Chapter 7

Multithreaded RPC Programming

This manual does not cover basic topics and code examples for the Solaris implementation of multithreaded programming. Instead, refer to the Multithreaded Programming Guide for background on the following topics.

  • Thread creation

  • Scheduling

  • Synchronization

  • Signals

  • Process resources

  • Lightweight processes (LWP)

  • Concurrency

  • Data-locking strategies

TI-RPC supports multithreaded RPC servers. The difference between a multithreaded server and a single-threaded server is that a multithreaded server uses threading technology to process incoming client requests concurrently. Multithreaded servers can have higher performance and availability compared with single-threaded servers.

MT Client Overview

In a multithread client program, a thread can be created to issue each RPC request. When multiple threads share the same client handle, only one thread at a time is able to make an RPC request. All other threads wait until the outstanding request is complete. On the other hand, when multiple threads make RPC requests using different client handles, the requests are carried out concurrently. Figure 4-1 illustrates a possible timing of a multithreaded client implementation consisting of two client threads using different client handles.

The following figure shows the client side implementation of a multithreaded rstat program. The client program creates a thread for each host. Each thread creates its own client handle and makes various RPC calls to the given host. Because the client threads are using different handles to make the RPC calls, they can carry out the RPC calls concurrently.

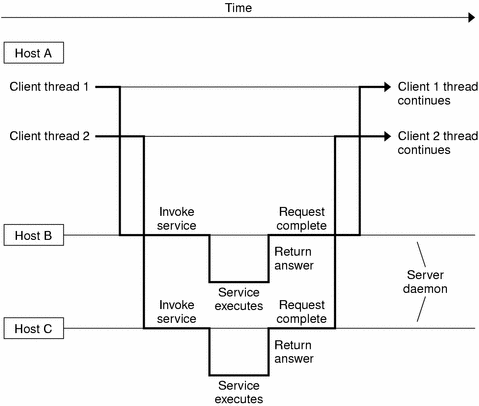

Figure 7-1 Two Client Threads Using Different Client Handles (Real Time)


Note - You must link in the thread library when writing any RPC multithreaded-safe application. The thread library must be the last named library on the link line. To link this properly, specify the -lthread option in the compile command.


Compile the program in the code example by typing cc rstat.c -lnsl -lthread.

MT Server Overview

RPC servers made available prior to the Solaris 2.4 release are single threaded. That is, they process client requests sequentially, as the requests come in. For example, say two requests come in, and the first takes 30 seconds to process, and the second takes only 1 second to process. The client that made the second request still has to wait for the first request to complete before it receives a response. This result is not desirable, especially in a multiprocessor server environment, where each CPU could be processing a different request simultaneously.Also, while one request is waiting for I/O to complete, sometimes other requests could be processed by the server.

Facilities in the RPC library for service developers can create multithreaded servers that deliver better performance to end users. Two modes of server multithreading are supported in TI-RPC: the Auto MT mode and the User MT mode.

In the Auto mode, the server automatically creates a new thread for every incoming client request. This thread processes the request, sends a response, and exits. In the User mode, the service developer decides how to create and manage threads for concurrently processing the incoming client requests. The Auto mode is much easier to use than the User mode, but the User mode offers more flexibility for service developers with special requirements.


Note - You must link in the thread library when writing RPC multithreaded-safe applications. The thread library must be the last named library on the link line. To link this properly, specify the -lthread option in the compile command.


The two calls that support server multithreading are rpc_control() and svc_done(). The rpc_control() call is used to set the MT mode, either Auto or User mode. If the server uses Auto mode, it does not need to invoke svc_done() at all. In User mode, svc_done() must be invoked after each client request is processed so that the server can reclaim the resources from processing the request. In addition, multithreaded RPC servers must call on svc_run(). Note that svc_getreqpoll() and svc_getreqset() are unsafe in MT applications.

If the server program does not invoke any of the MT interface calls, it remains in single-threaded mode, which is the default mode.

You are required to make RPC server procedures multithreaded safe regardless of which mode the server is using. Usually, this means that all static and global variables need to be protected with mutex locks. Mutual exclusion and other synchronization APIs are defined in synch.h. See the condition(3THR) , rwlock(3THR), and mutex(3THR) man pages for a list of the various synchronization interfaces.

The following figure illustrates a possible timing of a server implemented in one of the MT modes of operation.

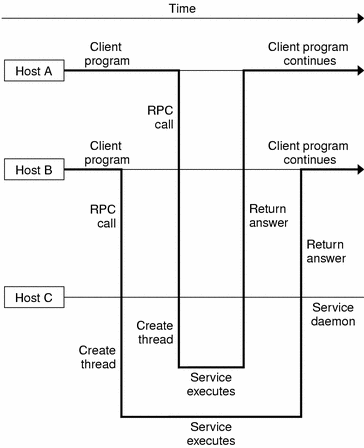

Figure 7-2 MT RPC Server Timing Diagram

Sharing the Service Transport Handle

The service transport handle, SVCXPRT, contains a single data area for decoding arguments and encoding results. Therefore, in the default, single-threaded mode, this structure cannot be freely shared between threads that call functions that perform these operations. However, when a server is operating in the MT Auto or User modes, a copy of this structure is passed to the service dispatch procedure in order to enable concurrent request processing. Under these circumstances, some routines that would otherwise be unsafe become safe. Unless otherwise noted, the server interfaces are generally MT safe. See the rpc_svc_calls(3NSL) man page for more details on safety for server-side interfaces.

MT Auto Mode

In the Auto mode, the RPC library creates and manages threads. The service developer invokes a new interface call, rpc_control(), to put the server into MT Auto mode before invoking the svc_run() call. In this mode, the programmer needs only to ensure that service procedures are MT safe.

rpc_control() enables applications to set and modify global RPC attributes. At present, this function supports only server-side operations. The following table shows the rpc_control() operations defined for Auto mode. See also the rpc_control(3NSL) man page for additional information.

Table 7-1 rpc_control() Library Routines

Routine

Description

RPC_SVC_MTMODE_SET()

Set multithread mode

RPC_SVC_MTMODE_GET()

Get multithread mode

RPC_SVC_THRMAX_SET()

Set maximum number of threads

RPC_SVC_THRMAX_GET()

Get maximum number of threads

RPC_SVC_THRTOTAL_GET()

Total number of threads currently active

RPC_SVC_THRCREATES_GET()

Cumulative total number of threads created by the RPC library

RPC_SVC_THRERRORS_GET()

Number of thr_create() errors within RPC library


Note - All of the get operations in Table 7-1, except RPC_SVC_MTMODE_GET(), apply only to the Auto MT mode. If used in MT User mode or the single-threaded default mode, the results of the operations might be undefined.


By default, the maximum number of threads that the RPC server library creates at any time is 16. If a server needs to process more than 16 client requests concurrently, the maximum number of threads must be set to the desired number. This parameter can be set at any time by the server. It enables the service developer to put an upper bound on the thread resources consumed by the server. Example 7-1 is an example RPC program written in MT Auto mode. In this case, the maximum number of threads is set at 20.

MT performance is enhanced if the function svc_getargs() is called by every procedure other than NULLPROCS, even if there are no arguments (you can use xdr_void() in this case). This is true for both the MT Auto and MT User modes. For more information on this call, see the rpc_svc_calls(3NSL) man page.


Note - You must link in the thread library when writing RPC multithreaded-safe applications. The thread library must be the last named library on the link line. Specify the -lthread option in the compile command.


The following example illustrates the server in MT Auto mode. To compile this program, type cc time_svc.c -lnsl -lthread.


Example 7-1 Server for MT Auto Mode

#include <stdio.h>

		#include <rpc/rpc.h>
		#include <synch.h>

		#include <thread.h>
		#include "time_prot.h"

		void time_prog();

		main(argc, argv)
		int argc;
		char *argv[];
		{
		int transpnum;
		char *nettype;
		int mode = RPC_SVC_MT_AUTO;
		int max = 20;      /* Set maximum number of threads to 20 */

		if (argc > 2) {
			fprintf(stderr, "usage: %s [nettype]\n", argv[0]);
			exit(1);
		}

		if (argc == 2)
			nettype = argv[1];
		else
			nettype = "netpath";

		if (!rpc_control(RPC_SVC_MTMODE_SET, &mode)) {
			printf("RPC_SVC_MTMODE_SET: failed\n");
			exit(1);
		}
		if (!rpc_control(RPC_SVC_THRMAX_SET, &max)) {
			printf("RPC_SVC_THRMAX_SET: failed\n");
			exit(1);
		}
		transpnum = svc_create( time_prog, TIME_PROG, TIME_VERS,
 			nettype);

		if (transpnum == 0) {
			fprintf(stderr, "%s: cannot create %s service.\n",
			argv[0], nettype);
			exit(1);
		}
		svc_run();
	}

	/*
	 * The server dispatch function.
	 * The RPC server library creates a thread which executes
 * the server dispatcher routine time_prog().  After which
 * the RPC library destroys the thread.
 */

	static void
	time_prog(rqstp, transp)
		struct svc_req *rqstp;
		SVCXPRT *transp;
	{

		switch (rqstp->rq_proc) {
			case NULLPROC:
				svc_sendreply(transp, xdr_void, NULL);
				return;
			case TIME_GET:
				dotime(transp);
				break;
			default:
				svcerr_noproc(transp);
				return;
		}
	}
	dotime(transp)
	SVCXPRT *transp;
	{

		struct timev rslt;
		time_t thetime;

		thetime = time((time_t *)0);
		rslt.second = thetime % 60;
		thetime /= 60;
		rslt.minute = thetime % 60;
		thetime /= 60;
		rslt.hour = thetime % 24;
	if (!svc_sendreply(transp, xdr_timev,(caddr_t) &rslt)) {
			svcerr_systemerr(transp);
		}
	}
