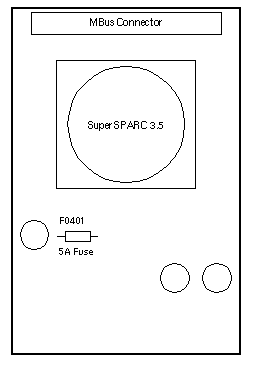

SM50 SuperSPARC Module

SS20
Option 1170

501-2528
50MHz

Notes

  1. Solaris 1.1.1 Version A is not supported.
  2. If two modules are installed, the minimum OS is Solaris 2.2.
  3. Mixing different module types is not supported.
  4. The 5A Fuse at F0401 is not field replaceable.

Reference

SuperSPARC Module Installation Guide, 801-2035.

SM50 SuperSPARC Module

SS20
Option 1170

501-2708
50MHz

Notes

  1. The minimum operating system is Solaris 1.1 (SunOS 4.1.3).
  2. If two modules are installed, the minimum OS is Solaris 2.2.
  3. Mixing different module types is not supported.
  4. The 22W DC-DC Power Supply is not field replaceable.
  5. The 8A Fuse 150-2246-01 at F0401 is field replaceable.

Reference

SuperSPARC Module Installation Guide, 801-2035.
