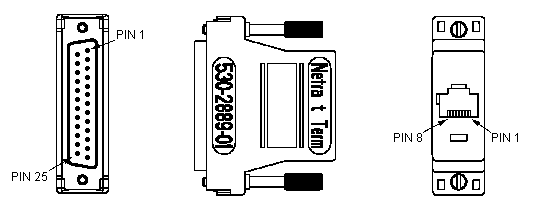

Serial: DB25P to RJ45F

530-2889

RJ45F WIRE COLOR DB25P
1 - RTS BLACK 5 - CTS
2 - DTR YELLOW 6 - DSR
3 - TXD ORANGE 3 - RXD
4 - GND RED 7 - GND
5 - GND GREEN
6 - RXD BROWN 2 - TXD
7 - DSR GREY 20 - DTR
8 - CTS BLUE 4 - RTS
