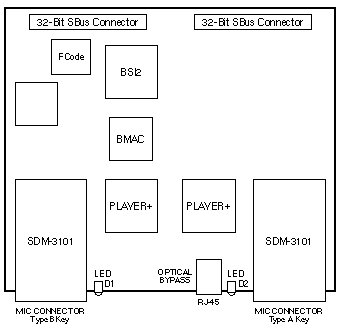

FDDI/S DAS 3.0
Sun-4/15/30/40/50/60/65/75
SS5 / SS10 / SS20 / SS600 / SS1000 / SC2000
Option 1016
| 370-2839 |
501-2689 |
595-3446 |
605-1495 |
CS6400 FRU
NPI |
Sun Part Number
NPI |
Sun FRU Assembly |
Sun HW/SW Assy |
 |
|
| LEDs Off |
Driver not loaded |
| Red LED |
Driver loaded
Interfaces not configured (ifconfig down) |
| Amber LED |
Interfaces configured (ifconfig up)
Not connected to active FDDI network |
| Green LED |
Connected to active FDDI network |
|
Notes
- The FDDI/S operates on Solaris 1.x or Solaris 2.x.
- The FDDI/S is compatible with FDDI 3.0, 4.0, and 5.0.
- The FDDI/S is not compatible with FDDI 1.0 or FDDI 2.0.
Reference:
- SunLink FDDI/S 3.0 User's Guide, 801-7424.
|
