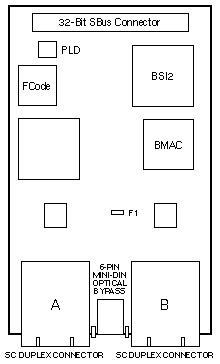

FDDI/S DAS 5.0/6.0/7.0

Sun-4/15/30 / SS5 / SS10 / SS20 / SS600
SS1000 / SC2000 / A11 / A12 / A14
E3000 / E4000 / E5000 / E6000
E3500 / E4500 / E5500 / E6500 / E10000

Options 1026 / 1143

370-2340 370-3143 370-4046
w/o Backpanel Holes
NPI 105-0167
w Backpanel Holes
NPI 105-0167
=370-3143-02
BugID 4156113

Notes

  1. The minimum FDDI 5.0 OS is Solaris 1.1.1 or Solaris 2.3.
  2. The FDDI/S is not compatible with FDDI 1.0, 2.0, 3.0 or 4.0.
  3. Option 1143 includes FDDI 6.0 for Solaris 7 64-Bit operating system.
  4. The Solaris 8 Supplement includes FDDI 7.0 software.
  5. The final operating system for this FDDI/S is Solaris 9.
  6. PLD Rev 1.0 is not compatible with the A11, A12, and A14.
  7. The 3 Meter cable has a duplex MIC connector (male) on one end and a duplex SC connector (male) on the other end.
  8. Cable assembly 537-1009 includes type A, AM, B, BM, and S keys and a duplex MIC to MIC (female to female) coupler.
  9. Ship Kit 560-2366 includes an Upper SBus Backpanel and screws.

References

  1. FDDI/S 5.0 User's Guide, 802-6674.
  2. FDDI/S 6.0 User's Guide, 805-5447.
