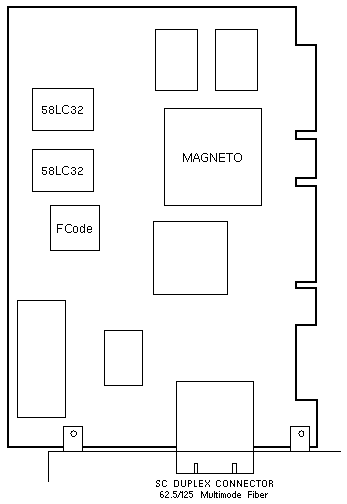

SunATM-622/MFiber 3.0/4.0/5.0

Codename: Magneto

A16 / A20 / A21 / A22 / A23 / A25 / A26
A27 / A28 / A29 / A33 / A34 / A35 / A41
Netra t 1100 / Netra t 1120 / Netra t 1125
E3000 / E4000 / E5000 / E6000
E3500 / E4500 / E5500 / E6500 / E10000
Sun Fire 4800 / 4810 / 6800
Sun Fire V480 / Sun Fire V880
Sun Fire 12K / Sun Fire 15K

Options 1068 / 1159

501-3029
3.3/5V 32/64Bit 33/66MHz

Notes

  1. The minimum operating system is Solaris 2.5.1 Hardware: 4/97.
  2. The SunATM 3.0 software Update 1 is on CD-ROM 704-6006-11.
  3. Option 1159 includes ATM 4.0 software for Solaris 7.
  4. The Solaris 8 Supplement includes ATM 5.0 software.
  5. On a Sun Blade 1000, do not install in PCI Slot 1 (66MHz). Install only in Slot 2, 3, or 4 (33MHz).

References

  1. ATM 3.0 Installation and Users Guide, 805-0331.
  2. ATM 4.0 Installation and Users Guide, 805-6552.
