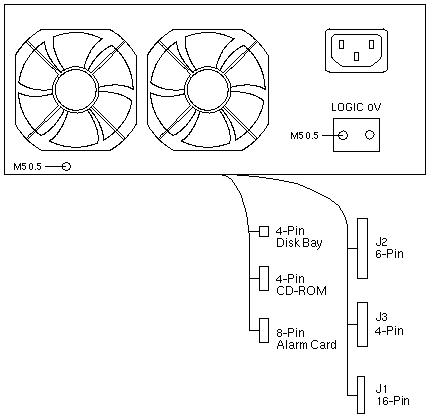

Artesyn EP071332
325 Watt Power Supply
Netra t 1125
| 300-1406 |
Type A136
AC Input Power Supply |
J1 to System Board J2901
| PIN |
FUNCTION |
|
PIN |
FUNCTION |
| 1 |
+3.3 -Sense |
9 |
Off |
| 2 |
+3.3 +Sense |
10 |
On |
| 3 |
+5.0 -Sense |
11 |
-12V |
| 4 |
+5.0 +Sense |
12 |
POR |
| 5 |
+3.0 -Sense |
13 |
+12V Return |
| 6 |
+3.0 +Sense |
14 |
+12V |
| 7 |
+3.0 OVP Program |
15 |
+12 Return |
| 8 |
+3 +V Program |
16 |
+12 |
J3 to System Board J2902
| PIN |
FUNCTION |
| 1 |
+5.0 Return |
| 2 |
+5.0 |
| 3 |
+3.0 |
| 4 |
+3.0 Return |
J2 to System Board J2903
| PIN |
FUNCTION |
| 1 2 3 |
+3.3 Return |
| 4 5 6 |
+3.3 |
DC Output
| V1 |
V2 |
V3 |
V4 |
V5 |
| +3.3V |
+5.0V |
+12.0V |
-12.0V |
2.5-3.5V |
| 50.0A |
30.0A |
6.0A |
0.4A |
25.0A |
|
|
|
