Delta
1500 Watt Power Supply
Sun Fire V1280 / Netra 1280
| 300-1523 |
300-1524 |
Sun Fire V1280
Type A166
AC Input Power Supply
Delta DPS-1500 |
Netra 1280
Type D142
DC Input Power Supply |

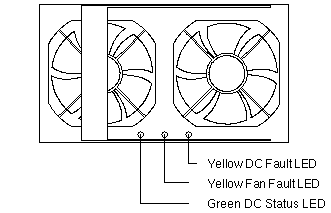

Front View
 |
| |

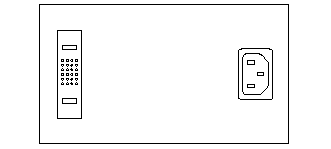

Rear View (AC Input displayed)
 |
AC Input (300-1523)
| 200-240V Nominal 50-60Hz 9A |
| Operating Range 180-264Vrms 47-63Hz |
DC Output
|
Sun Fire V1280 Codename: Lightweight 8 |
V1280 Notes
- The AC Input Power Supply is labeled 200-240V, 50/60Hz, 9A.
- The V1280 is labeled 200-240V, 50/60Hz, 18A (9A Max per cord).
Notes
- Power Supply slots are labeled PS0, PS1, PS2, and PS3.
- At least two dedicated branch circuits should be used.
- AC Input Source A provides power to PS0 and PS1.
- AC Input Source B provides power to PS2 and PS3.
|
