FDK PEX705-30
184 Watt Power Supply

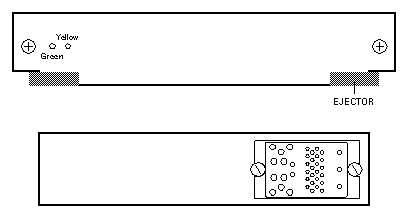

LED CODES

LED	DESCRIPTION
Green	PPS is operational
Yellow	PPS Failure

AC Input

VOLTAGE	CURRENT	FREQUENCY
100 - 240V	3A	47 - 63HZ

DC Output

+5V	+5V	+12V	+12V	MAXIMUM CONTINUOUS
20A	5A	13A	1.5A	195 Watts

Notes

1. One 300-1301 Power Supply is supported per system.
2. AC Input/Fan Assembly 370-1811 or 370-1812 provides cooling for the 184W Power Supply in the E4000/E4500, E5000/E5500, and E6000/E6500.
3. Fan Tray 540-2757 or 300 Watt Power/Cooling Module 300-1260 provides cooling for the 184 Watt Power Supply in the E3000.
4. The 184 Watt Power Supply provides the following functions:

   +5Vdc and +12Vdc peripheral tray power

   +5Vdc and +12Vdc drive precharge (non redundant)

   +3.3Vdc and +5Vdc system precharge (non redundant)

   +5Vdc redundant system power

   +12Vdc redundant power for PCM fans

   +12Vdc redundant power for E3000/E3500 Auxiliary Fan Module

   +5Vdc auxilliary power for Clock Board remote console serial port

   E4000/E4500 Keyswitch Assembly fan power

   E5000/E5500 and E6000/E6500 AC Input Box fan power
