Lucent LP300A
300 Watt Power Supply

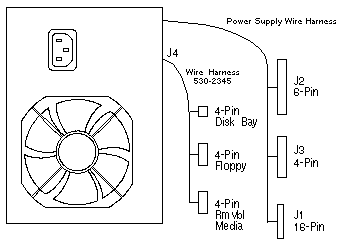

J1 to System Board J2901 PIN FUNCTION PIN FUNCTION 1 +3.3 -Sense 9 Off 2 +3.3 +Sense 10 On 3 +5.0 -Sense 11 -12V 4 +5.0 -Sense 12 POR 5 +3.0 -Sense 13 +12V Return 6 +3.0 +Sense 14 +12V 7 +3.0 OVP Program 15 +12 Return 8 +3 +V Program 16 +12 J2 to System Board J2903 PIN COLOR FUNCTION 1 2 3 Black +3.3 Return 4 5 6 Yellow +3.3

J3 to System Board J2902 PIN COLOR FUNCTION 1 Black +5.0 Return 2 Red +5.0 3 Black +3.0 Return 4 Blue +3.0 J4 to Harness 530-2345 PIN FUNCTION PIN FUNCTION 1 +5 6 +5 Return 2 +5 7 +5 Return 3 +5 8 +5 Return 4 +12 9 +12 Return 5 +12 10 +12 Return

AC Input

85-264 Vrms

47-63Hz

DC Output
