Sony APS-28
60 Watt Power Supply

Options 547 / 569 / 570 / 571 / 804 / 827

300-1080

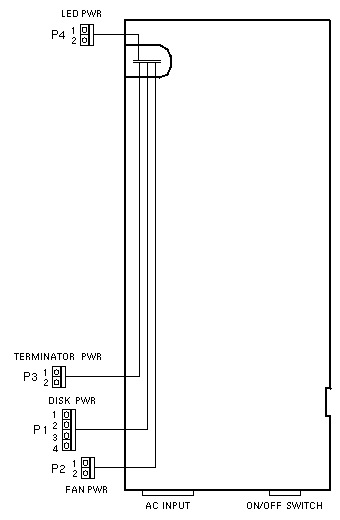

AC Input Power Supply

P1
1 2 3 4
Blu Blk Blk Red
+12V GND GND +5V

P2
1 2
Blu +12
Blk Gnd

P3
1 2
Red +5
Blk Gnd

P4
1 2
Red +5
Blk Gnd


DC Output
+5V +12V
3.5A 3.5A
