Sony APS-45
44 Watt Power Supply

Options 540 / 545 / 550 / 552 / 557 / 558
Options 559 / 567 / 579 / 580 / 660 / 822

300-1105

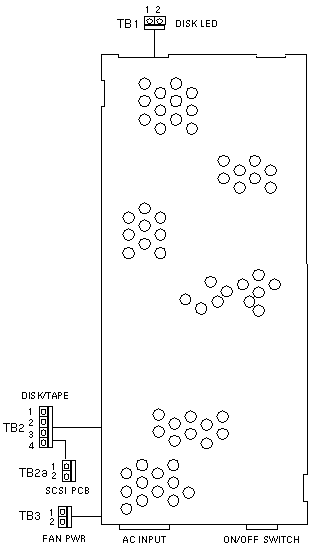

AC Input Power Supply

TB1
1 2
Blk Red
GND +5V


TB2
1 2 3 4
Blu Blk Blk Red
+12V GND GND +5V


TB2a
1 2
Blk Blu
GND +5V


TB3
1 2
Blk Blu
GND 12V

DC Output
+5V +12V
2.0A 1.5A
