Zytec EP071235-C1
350 Watt Power Supply

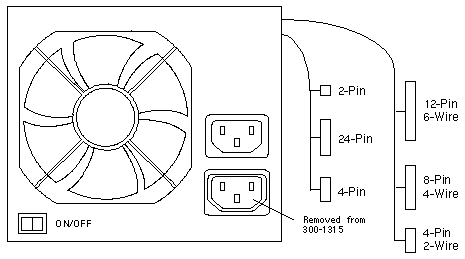

Power to System Board PIN COLOR FUNCTION 1 - 6 Black Rtn to J3205 7 - 12 Yellow +3.3 to J3205 1 - 2 Black +5 Rtn to J3204 3 - 4 Red +5 to J3204 5 - 6 Black +3.0B to J3204 7 - 8 Blue +3.0B Rtn to J3204 1 - 2 Green +3.0A to J3203 3 - 4 Black +3.0A Rtn to J3203 Floppy Drive Power PIN COLOR FUNCTION 1 Red +5V 2 Black +5 Rtn 3 N/C N/C 4 N/C N/C Removable Media Power PIN COLOR FUNCTION 1 Brown +12 2 Black +12 Rtn 3 Black +5 Rtn 4 Red +5

24-Pin Connector to System Board J3206 PIN COLOR FUNCTION PIN COLOR FUNCTION 1 Green +3A Sense 13 Red +3A -Sense 2 Grn/Wht +3A Vprog 14 Red/Wht +3A OVP Prog 3 Prpl/Wht +3B Sense 15 Brown +3B -Sense 4 Pnk/Wht +3B Vprog 16 Black +3B OVP Prog 5 Blue Fan Speed 17 Brown Pwr On Reset 6 Blu/Wht +3.3 Sense 18 Black +3.3 -Sense 7 Gry/Wht +5 Sense 19 Grey +5 -Sense 8 Blk/Wht +12 20 Red/Yel Ret 9 Brn/Wht +12 21 Purple Ret 10 White -12 22 Orange Interlock 11 Yellow On 23 Pink Off 12 Yel/Wht Tmp Sense 24 Pink Tmp Sense Note: Outputs 3.0A and 3.0B are programmable from 2.5V to 3.5V. They provide the core voltage to UPA0 and UPA1 respectively when a module is installed.

DC Output

V1	V2	V3	V4	V5	V6
+3.3V	+5.0V	+12.0V	-12.0V	+3.0V	+3.0V
55.0A	25.0A	6.5A	0.4A	12.0A	12.0A
