Maxtor XT-8760S (669MB)

5 1/4" 3600 RPM Single Ended SCSI

Options 561 / 563 / 565 / 566

370-1319 370-1326 555-1151
1098618-B
Black Bezel
Green LED
3 1/4" Height
1098778-B
w/o Bezel
w/o LED
3 1/4" Height
FS0019-01- 6
w/o Bezel
w/o LED
w Bracket

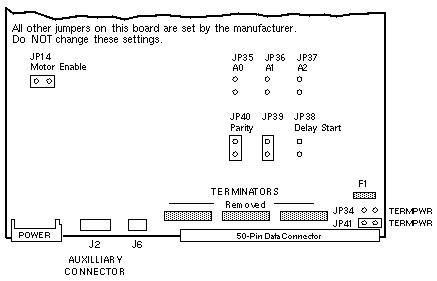

Bottom View

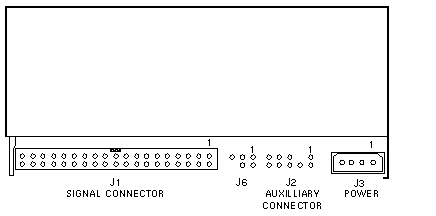

End View

Address Description

The address is set on the J2 Adapter installed in the J2 Auxiliary connector, the Address Select switch on the External Storage Module, or on Jumpers JP35, JP36, and JP37. Set the address at only one location.

J2 Adapter Circuitry External Storage Module


Orient Pin-1 of
Address Select
Switch Cable
530-1659 with
ID4 on the J2
Adapter.

Notes

  1. Drive address selection cannot be set on Auxiliary Connector J2 unless the adapter is installed.
  2. The J2 Adapter must be installed in order for the ID Select Switch on the External Storage Module to function
  3. The Maxtor drive does not fit into the lower drive position of External Storage Modules manufactured prior to October 1990. Remove the vertical stop block with 10-Inch End Cutter 250-1074-01.

References

  1. 5-1/4" SCSI Disk Drive Installation and Configuration for Sun Office Pedestals, 813-2048.
  2. Revised Removal/Replacement Procedures for Sun ESM and EEM Storage Units, 814-3044.
