Quantum 210S (207MB)
3 1/2" 3600 RPM Single Ended SCSI
Sun-4/40/50/75 / SS10
Options 552 / 553
| 370-1327 |
370-1376 |
| 1 5/8" Height |
1 5/8" Height
|

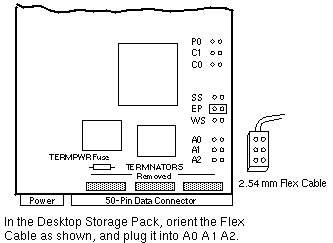

| JUMPER |
SETTING |
DESCRIPTION |
USAGE |
| SS |
Out |
Spindle sync |
Not used |
| EP |
In |
Parity |
Enable parity |
| WS |
Out |
Wait spin |
Not used |
| A0,A1,A2 |
Out |
Drive ID |
Target 0 |
| A0 |
In |
Drive ID |
Target 1 |
| A1 |
In |
Drive ID |
Target 2 |
| A0,A1 |
In |
Drive ID |
Target 3 |
Power
- 0.7 Amps @ +5Vdc
- 0.7 Amps @ +12Vdc
- 11.9 Watts
Notes
- Remove the TERMPWR fuse when installing the drive in an SS10.
- The Sun-4/60 or Sun-4/65 chassis does not provide adequate cooling for the
207MB Disk Drive.
References
- SPARCstation IPC Installation Guide, 800-5037.
- SPARCstation IPC Installation Guide, 800-5565.
Installing SPARCstation 2 Internal Disk Drives, 800-5661.
|
