Seagate ST39120A (9.1GB)

3 1/2" 7200 RPM Ultra ATA/66

A21 / A22
Options 5226 / 5236

370-3693
Barracuda ATA

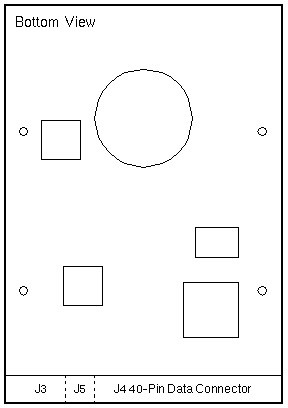

Bottom View

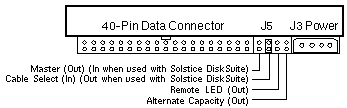

End View

Notes

  1. This drive was added as an alternate source in January 2000.
  2. Either a Floppy or a front Disk Drive can be installed in the Ultra 5.
  3. The Ultra 5 front Disk Mounting Bracket replaces the Floppy Bracket.
  4. The Ultra 5 front Disk Mounting Bracket has no Sun part number.
  5. The Ultra 5 front Disk Mounting Bracket is included with Option 5236.
  6. The Ultra 10 primary/rear drive requires Mounting Bracket 370-3721.

References

  1. Ultra 5/10 Service Manual, 805-0423.
  2. Ultra 5 Service Manual, 805-7763.
  3. Ultra 10 Service Manual, 805-7764.
  4. Ultra 5/10 CD-ROM and Hard Drive Installation Guide, 805-3085.
  5. Ultra 5/10 CD-ROM and Hard Drive Installation Guide, 805-7115.
