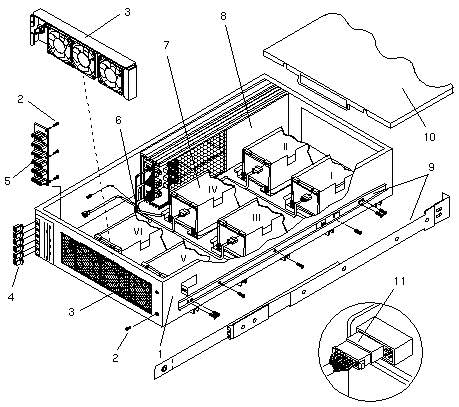

| CODE |
PART # |
DESCRIPTION |
| 1 |
340-2613 |
Chassis Enclosure |
| 2 |
240-1372 |
M4 0.7 × 10 mm Screw |
| 3 |
540-2213 |
3-Fan DC Fan Tray Assembly, 45 CFM each |
| 4 |
150-2190 |
15-Segment Address Select Switch (obsolete) |
| 4 |
150-2431 |
15-Segment Address Select Switch |
| 5 |
501-2426 |
Remote LED Display Panel |
| 6 |
530-2097 |
DC Wire Harness and Address Select Cable |
7
NS
NS
NS |
540-2521
370-1695
340-2612
330-1400 |
2.9GB Disk Drive Assembly
 2.9GB Disk Drive, Seagate
Disk Drive Mounting Bracket
Disk Drive Handle |
7
NS
NS
NS |
540-2646
370-1868
340-2612
330-1400 |
9.0GB Disk Drive Assembly
9.0GB Disk Drive, Seagate
Disk Drive Mounting Bracket
Disk Drive Handle |
| 8 |
300-1096 |
269 Watt Power Supply |
| 8 |
300-1312 |
269 Watt Nordic Power Supply (Dec 1995) |
| 9 |
370-1385 |
-01 Slide Rail Set, Inner 651.2 mm, Outer 742.7 mm |
| 9 |
370-1385 |
-03 Slide Rail Set, Inner 717.3 mm, Outer 742.7 mm |
| 10 |
340-2614 |
Chassis Cover |
| 11 |
530-2097 |
Address Select Switch Cable |
| NS |
150-1890 |
Differential Terminator, HD68 |
| NS |
530-1343 |
AC Power Cord, 240V |
| NS |
530-1351 |
AC Power Cord 230V |
| NS |
530-1883 |
External SCSI Cable, HD68 to HD68, 20 cm |
| NS |
530-1884 |
External SCSI Cable, HD68 to HD68, 80 cm |
| NS |
530-1885 |
External SCSI Cable, HD68 to HD68, 2.0 M |
| NS |
530-1886 |
External SCSI Cable, HD68 to HD68, 12.0 M |
| NS |
530-2096 |
Internal SCSI Cable, 68-Pin, 3.0 M |
| NS |
530-2022 |
External SCSI Cable, HD68 to HD68, 1.0 M |
|
800-7341 |
Differential SCSI Disk Tray Service Manual |
