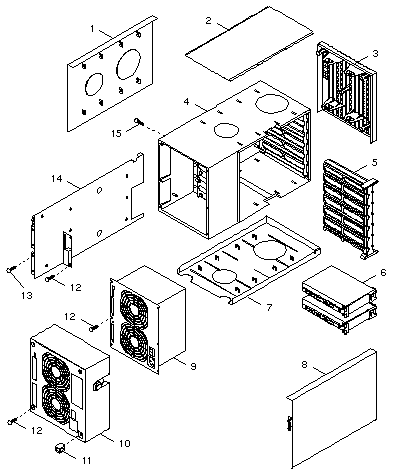

| CODE |
PART # |
DESCRIPTION |
| 1 |
330-1957 |
Side Cover |
| 2 |
330-1956 |
Top Cover |
| 3 |
540-2798 |
Front Cover Assembly |
| 4 |
540-2771 |
Chassis Assembly |
| 5 |
540-2748 |
Spacer Assembly |
6
-
-
-
- |
540-2815
240-2080
330-1951
330-1952
370-2286 |
4.2GB 5400 RPM Disk Drive Assembly
 #6-32 × 3/16" Torx Screw
Right Side Mounting Rail
Left Side Hinged Mounting Rail
4.2GB Disk Drive, Seagate ST15230WC |
6
-
-
- |
540-2951
240-2304
370-2369
540-3025 |
9.1GB 7200 RPM Disk Drive Assembly
#6-32 × 3/16" Torx Screw
9.1GB Disk Drive, Seagate ST19171WC
1.6" Spud Mounting Bracket |
| 7 |
540-2787 |
Base Assembly |
| 8 |
540-2799 |
Door Assembly |
9
9 |
300-1283
300-1330 |
185 Watt Power Supply
185 Watt Power Supply |
| 10 |
540-2792 |
Rear Cover Assembly |
| 11 |
540-2789 |
Lockbox |
| 12 |
240-2283 |
M3 × 8 mm Screw |
| 13 |
240-2180 |
#4-40 Jack Screw |
| 14 |
501-2871 |
6-Slot Backplane |
| 15 |
240-2282 |
M3 × 14 mm Screw |
| NS |
150-2267 |
Forced Perfect Terminator, HD68 |
| NS |
330-1966 |
Key |
| NS |
530-1884 |
External SCSI Cable, HD68 to HD68, 80 cm |
| NS |
540-2750 |
Cover Kit/FRU with Front, Top, Side, and Door |
|
802-4430 |
SPARCstorage MultiPack Service Manual |
|
805-1667 |
SPARCstorage MultiPack Service Manual |
