SPARCstorage UniPack
| 5101 |
5102 |
5151 |
5152 |
1.05GB Disk
5400 RPM
68-68 Pin Cable |
1.05GB Disk
5400 RPM
50-68 Pin Cable |
2.1GB Disk
7200 RPM
68-68 Pin Cable |
2.1GB Disk
7200 RPM
50-68 Pin Cable |

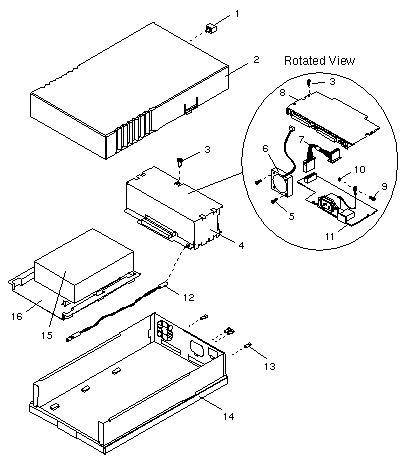

| CODE |
PART # |
DESCRIPTION |
-
-
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14 |
595-3709
599-2045
540-1982
540-2673
240-1530
540-2694
240-2246
240-2294
370-1986
530-2180
501-2790
240-1434
240-1373
300-1282
530-2183
240-1926
540-2672 |
Drive Enclosure without Disk Drive FRU
 Disk Drive Enclosure without Disk Drive
Lockbox
Disk Drive Cover Assembly
3 × 6 mm Screw
Disk Drive Power Supply Assembly
 M3 × 25 mm Screw (obsolete)
M3 × 25 mm Pan-Head Screw
Fan
Disk Drive DC Power Cable
Disk Drive SCSI Interface Card
M4 × 10 mm Screw
M4 Nut
30 Watt Power Supply
LED Cable
#4-40M/2-56F Jackscrew
Base Assembly |
15
15
16
-
-
-
-
-
- |
540-2675
540-2697
340-3222
370-1964
370-1956
370-2040
370-2365
370-2366
370-2808 |
1.05GB 5400 RPM Disk Drive Assembly
2.1GB 7200 RPM Disk Drive Assembly
Mounting Bracket
1.05GB 5400 RPM Disk Drive, Conner 1
2.1GB 7200 RPM Disk Drive, IBM (disqualified)
2.1GB 7200 RPM Disk Drive, Seagate ST32550WC
2.1GB 7200 RPM Disk Drive, Seagate ST32171WC
2.1GB 7200 RPM Disk Drive, Fujitsu M2952
2.1GB 7200 RPM Disk Drive, Quantum VK22J05 |
| NS |
261-5678 |
Sun Logo |
| NS |
530-1884 |
External SCSI Cable, HD68 to HD68, 80 cm |
| NS |
530-2115 |
External SCSI Cable, HD68 to HD50, 1.2M |
| NS |
530-2383 |
External SCSI Cable, HD68 to HD68, 80 cm |
|
802-3229 |
SPARCstorage UniPack Hard Drive Replacement |
- Seagate 370-1753, Conner 370-1822, IBM 370-2072,
and Quantum 370-2168 were not qualified in the UniPack.
|
