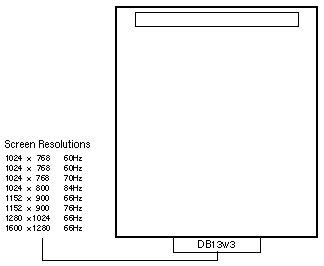

Auxiliary Video Board

SS10SX / SS20
Options 325 / 326 / 327 / 345 / 346 / 347

501-2020 501-2488
SS10SX
83.8 mm × 98.4 mm		 SS20
83.8 mm × 95.6 mm



Notes

  1. The minimum operating system is Solaris 2.3.
  2. Solaris 2.3 requires the Solaris 2.3 Supplement CD, 704-4195-10.
  3. Solaris 2.6 does not support XIL compute acceleration for the SX.
  4. The Auxiliary Video Board is required if two VSIMMs are installed.
  5. Install the second VSIMM in J0202 on the SS10SX CPU.
  6. Install the second VSIMM in J0406 on the SS20 CPU.
  7. Use the sxconfig (1M) command to configure contiguous memory.
  8. Use the cg14config (1M) command to change resolutions.

References

  1. SPARCstation 10SX VSIMMs Installation, 801-2535.
  2. SPARCstation 20 VSIMMs Installation, 801-6185.
  3. SS10SX System Configuration Guide, 801-5498.
  4. SS10SX and SS20 System Configuration Guide, 801-7287.
  5. Platform Notes: SMCC Frame Buffers, 802-2661.
  6. Platform Notes: SMCC Frame Buffers, 802-3755.
  7. Platform Notes: SMCC Frame Buffers, 802-5011.
