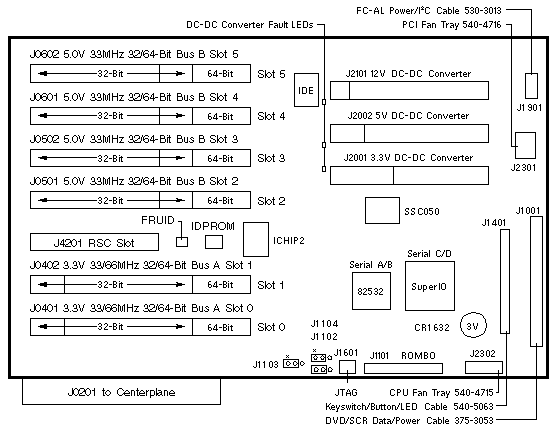

I/O Riser Board

Sun Fire V480

501-5820

Jumper Settings

JUMPER PINS SETTING DESCRIPTION
J1102 1-2
2-3
In
In
Select Flash PROM (default)
Select ROMBO
J1103 1-2
2-3
In
In
FPROM low half booting (default)
FPROM high half booting
J1104 1-2
2-3
In
In
FPROM write enabled (default)
FPROM write protected

PCI Slot Device Paths

PCI Slot Device Path Speed
0 pci@8,600000/<device>@1 66MHz
1 pci@8,600000/<device>@2 66MHz
2 pci@8,700000/<device>@2 33MHz
3 pci@8,700000/<device>@3 33MHz
4 pci@8,700000/<device>@4 33MHz
5 pci@8,700000/<device>@5 33MHz

Sun Fire V480 Codename: Cherrystone

Notes

  1. The minimum operating system is Solaris 8 2/02.
  2. IDPROM 100-5311 is not available as a FRU.
  3. The programmed IDPROM contains two MAC addresses.
  4. DC-DC Converter (3.3V) 300-1437 is not available as a FRU.
  5. DC-DC Converter (5V) 300-1494 is not available as a FRU.
  6. DC-DC Converter (12V) 300-1495 is not available as a FRU.

References

  1. Sun Fire V480 Product Notes, 816-0905.
  2. Sun Fire V480 Administration Guide, 816-0904.
  3. Sun Fire V480 Parts Installation and Removal Guide, 816-0907.
