E10000

Options 7022 / 7023

501-2653 501-2654

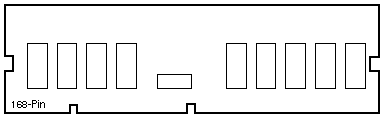

32MB 3.3V ECC
60ns DIMM
Option 7022		 128MB 3.3V ECC
60ns DIMM
Option 7023

DIMM Installation

# DIMMs MEMORY ASIC 0 MEMORY ASIC 1
BANK 0 BANK 2 BANK 1 BANK 3
16
16
16
16
32		 x
x


x

x
x
x		 x

x

x
x

x
x

Notes

  1. All DIMMs on the E10000 Memory Board must be the same size.
  2. Memory Board configurations of 512MB or 1GB are supported using 32MB DIMMs. Configurations of 768MB are not supported.
  3. Memory Board configurations of 2GB or 4GB are supported using 128MB DIMMs. Configurations of 3GB are not supported.

Reference

Ultra Enterprise 10000 Component Replacement Guide, 805-0311.
