20-40GB 4 mm DDS-4 Tape Drive

A14 / A23 / A27 / A28 / A29 / E250 / E450 / E220R / E420R
E3000 / E4000 / E5000 / E6000 / E3500 / E4500 / E5500 / E6500
Netra t 1400/1405 / Netra 20 / StorEdge D240 / Sun Fire V880
Sun Fire 12K / Sun Fire 15K

Options 5881 / 6295 / 6296 / TAP4MM-012A

390-0027 390-0028 595-5472
HP C5683-00625
Wide SCSI Enabled
Medium Grey Bezel
Option 6296 + Unipack		 HP C5683-00625
Wide SCSI Disabled
Medium Grey Bezel
Option 6295		 D240 FRU
Assembly 599-2397
DDS-4 390-0027

Notes

  1. The minimum operating system is Solaris 2.5.1 with Patch 103857.
  2. The Narrow SCSI Adapter Cable is part number 530-2924.
  3. The Narrow SCSI 68-50 Pin Adapter Cable is part number 370-3548.
  4. The Narrow SCSI Cable and Adapter kit is part number 540-4484.

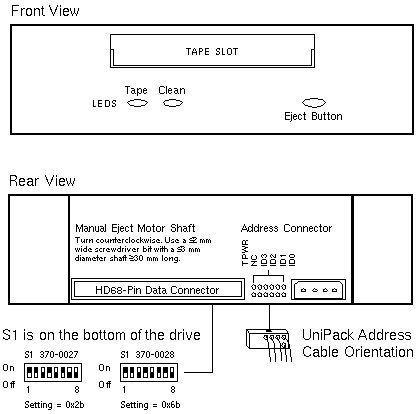

  5. Use the Address Cable or 2 mm shunts on the Address Connector.
  6. Solaris only supports S1 switch settings 0x2b and 0x6b.
  7. The Blank Data Tape part number is 370-4083-01.
  8. The Cleaning Kit part number is 370-1613-01.
  9. The DDS-4 drive can read and write DDS-2, DDS-3, and DDS-4 tapes.
  10. DDS-1 (90m) tapes can be read but not written by the DDS-4 drive.

Reference

DDS-4 Tape Drive Installation and User Guide, 806-3313.
