2.3GB 8 mm Tape Drive

Sun-4/370/390/470/490
SS670MP / SS690MP

Options 566 / 802 / 804

370-1297 370-1405
Exabyte EXB-8200
Black Bezel
Exabyte EXB-8200
Light Grey Bezel

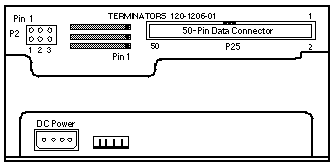

Rear View

Jumper P2
SCSI ID (MSB) 1 2 (LSB) 3
4 In Out Out
5 In Out In
3 Out In In
2 Out In Out
1 Out Out In
0 Out Out Out

Address Select Switch Cable

In the Desktop Storage Module and External Storage Module, orient the Address Select Switch Cable as shown, and plug it into P2.

Power

4.0 Amps @ +5Vdc
1.2 Amps @ +12Vdc
34.4 Watts

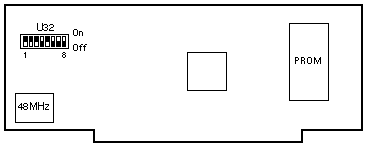

MX Card

Dip Switch U32
SWITCH SETTING DESCRIPTION
1 On Bypass memory test
2 On Enable parity checking
3 On Even byte disconnect
4 Off Report busy status
5 On Variable block mode on power up
6 Off No disconnect during data transfer
7 Off Not used
8 Off P6 cartridge type

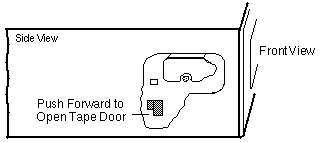

Manual Eject Switch

Notes

  1. The 112 Meter Tape part number is 370-1298-01.
  2. The Cleaning Kit part number is 370-2344-01.
  3. ECO WO_01575 enabled Parity checking on the MX card. Parity checking is disabled on drives shipped prior to December 1991.

Reference

Sun 2.3-Gbyte 8mm Tape Drive Configuration Procedures for 56-Inch Data Center Cabinets, 813-2081.
