Desktop Storage Module

827
20GB 4 mm Tape

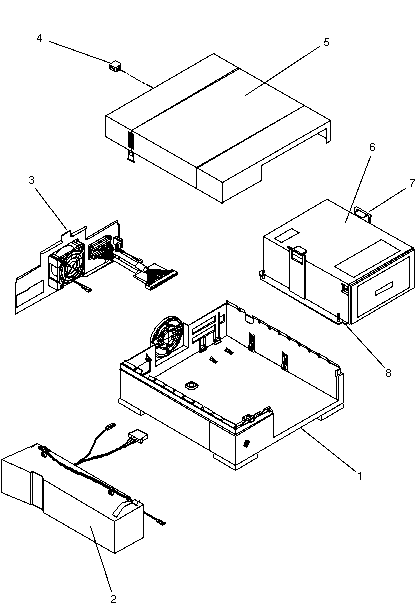

CODE PART # DESCRIPTION
1 540-2173 Base Assembly, Tape Drive Option
2 300-1080 60 Watt Power Supply
3
-
-
-
-
-
540-2145
150-2049
340-2506
530-2117
530-2125
540-2142
I/O Bracket Assembly 1
Address Select Switch
I/O Bracket
Address Select Switch Cable, 0.10" Spacing 2
Internal SCSI Cable, 308 mm 3
DC Fan Assembly, 14 CFM
4 540-1982 Top Cover Lockbox Assembly
5 540-2174 Top Cover Assembly, Tape Drive Option
6 370-1616 20GB 4 mm DDS-1 Autoloader, Grey Bezel
7 540-2263 Peripheral Removal Handle
8 340-2547 Tape Drive Mounting Bracket
NS 150-1785 External Active Terminator, HD50
NS 240-1530 M3 0.5 × 6 mm Tape Drive Mounting Screw
NS 370-1612 90 Meter Tape
NS 370-1613 Cleaning Tape
NS 370-1683 4-Tape Magazine
NS 530-1793 External SCSI Cable, HD50 to HD50, 80 cm
NS 530-1836 External SCSI Cable, HD50 to HD50, 2.0M
NS 530-1852 External SCSI Cable, HD50 to HD50, 4.0M
NS
-
-
-
540-2561
230-1404
230-1405
340-3045
Shipping Restraint Assembly
Shipping Restraint Belt
Shipping Restraint Buckle
Shipping Restraint Bracket

800-7236 Desktop Storage Module Service Manual

  1. The 20GB Tape Drive requires I/O Assembly 540-2145-02.
  2. The 20GB Tape Drive is not compatible with Address Cable 530-1790.
  3. The 20GB Tape Drive is not compatible with SCSI Cable 530-1844.
