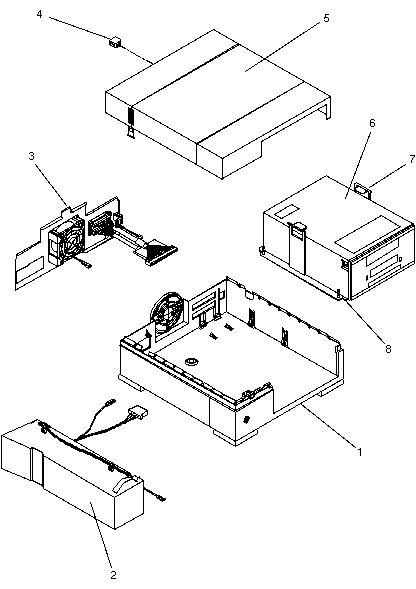

| CODE |
PART # |
DESCRIPTION |
| 1 |
540-2173 |
Base Assembly, Tape Drive Option |
| 2 |
300-1080 |
60 Watt Power Supply |
3
-
-
-
-
- |
540-2145
150-2049
340-2506
530-2117
530-2125
540-2142 |
I/O Bracket Assembly
Address Select Switch
I/O Bracket
Address Select Switch Cable, 0.10" Spacing
Internal SCSI Cable, 308 mm
DC Fan Assembly, 14 CFM |
| 4 |
540-1982 |
Top Cover Lockbox Assembly |
| 5 |
540-2174 |
Top Cover Assembly, Tape Drive Option |
| 6 |
370-2179 |
16-32GB 4 mm DDS-2 Autoloader, Light Grey Bezel |
| 7 |
540-2263 |
Peripheral Removal Handle |
| 8 |
340-2547 |
Tape Drive Mounting Bracket |
| NS |
150-1785 |
External Active Terminator, HD50 |
| NS |
240-1530 |
M3 0.5 × 6 mm Tape Drive Mounting Screw |
| NS |
370-2181 |
120 Meter DDS-2 Tape |
| NS |
370-1613 |
Cleaning Tape |
| NS |
370-1683 |
4-Tape Magazine |
| NS |
530-1793 |
External SCSI Cable, HD50 to HD50, 80 cm |
| NS |
530-1836 |
External SCSI Cable, HD50 to HD50, 2.0M |
| NS |
530-1852 |
External SCSI Cable, HD50 to HD50, 4.0M |
NS
-
-
- |
540-2561
230-1404
230-1405
340-3045 |
Shipping Restraint Assembly
Shipping Restraint Belt
Shipping Restraint Buckle
Shipping Restraint Bracket |
|
802-5325 |
16-32 Gbyte 4mm Tape Auto-Loader Desktop
Storage Module Installation and User's Guide |
