SPARCstorage FlexiPack / StorEdge FlexiPack

6284 6285 TAP4MM-021A
12-24GB 4 mm Tape
68-68 Pin Cable
12-24GB 4 mm Tape
50-68 Pin Cable
12-24GB 4 mm Tape
w/o Cable

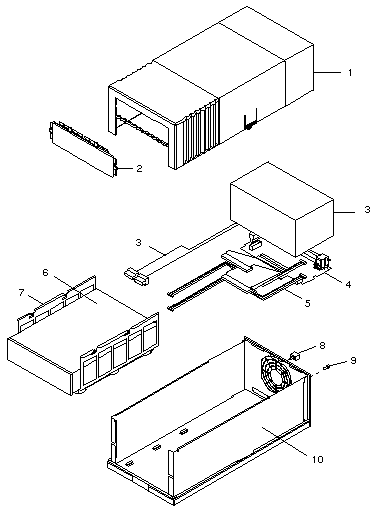

CODE PART # DESCRIPTION
- 599-2129 12-24GB 4 mm DDS-3 FlexiPack
1
2
540-3044
540-3125
Half-Height Peripheral Cover
Half-Height Filler Panel
3 300-1324 48 Watt Power Supply, Type A120
4 501-4327 Half-Height 16-Bit SCSI I/O Board
5 530-2181 Address Select Cable
6
-
-
7
-
540-3049
240-1530
240-2730
340-3645
370-2377
12-24GB 4 mm DDS-3 Tape Drive Assembly
M3 × 6 mm Screw (obsolete)
M3 × 6 mm Screw
Mounting Bracket
12-24GB 4 mm DDS-3 Tape Drive, Light Grey
8
9
10
540-1982
240-2180
540-3045
Lockbox
#4-40M/#2-56F Jackscrew
Base Assembly
NS 240-1530 M3 × 6 mm Screw
NS 330-1937 I/O Board Insulation
NS 370-2378 DDS-3 Tape
NS 370-1613 Cleaning Tape
NS 370-2819 HD50-HD68-Pin Adapter Board
NS 530-1884 External SCSI Cable, HD68 to HD68, 80 cm
NS 530-2115 External SCSI Cable, HD68 to HD50, 1.2M
NS 530-2183 LED Cable

802-7739 SPARCstorage FlexiPack Service Label
