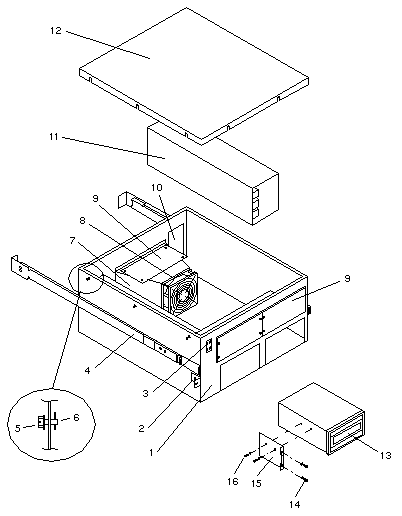

| CODE |
PART # |
DESCRIPTION |
| 1 |
340-2566 |
Chassis Enclosure |
| 2 |
340-2862 |
Tray Retaining Bracket |
| 3 |
150-1806 |
SCSI Address Select Switch |
| 4 |
370-1385 |
-03 Slide Rail Set, Inner 717.3 mm, Outer 742.7
mm |
| 5 |
None |
Cross-Drilled Screw (use 240-1732-01) |
| 6 |
None |
Screw Retaining Clip |
| 7 |
340-2564 |
Fan Enclosure |
8
NS
NS |
370-1214
340-0265
240-1740
| DC Fan, 105 CFM
 Fan Fingerguard
#6-32 × 2" Screw |
| 9 |
340-2835 |
Full-Height Filler Panel |
| 9 |
340-3369 |
Half-Height Filler Panel |
| 10 |
340-2601 |
Connector Panel |
| 11 |
300-1096 |
269 Watt Power Supply |
| 11 |
300-1312 |
269 Watt Nordic Power Supply (Available 12/95) |
| 12 |
340-2565 |
Top Cover |
13
13 |
370-2187
370-2255 |
20-40GB DLT Tape Drive, Medium Grey Bezel
20-40GB DLT Tape Drive, Black Bezel |
| 14 |
240-1372 |
M4 0.7 × 10 mm Screw |
| 15 |
340-2148 |
Peripheral Mounting Bracket |
16
16 |
240-1530
240-1878 |
M3 0.5 × 6 mm Screw (wrong thread size)
#6-32 × 5/16" Screw |
| NS |
150-1785 |
External Active Terminator, HD50 |
| NS |
370-2188 |
20GB Data Cartridge |
| NS |
370-2189 |
Cleaning Cartridge |
| NS |
530-1891 |
Internal SCSI Bus Cable, 1.8M |
| NS |
530-1892 |
DC Wire Harness |
| NS |
530-2058 |
4-Drive Address Select Switch Cable |
| NS |
540-2252 |
Front Panel, 56" Rack with 4 Tape Drive
Cutouts |
|
800-7340 |
Multi-Tape Backup Tray Service Manual |
