StorEdge D240

SG-XMT1-H2D1T1 SG-XMT1-H2T2 SG-XMT1-H4
2× 18GB Disks (540-4178)
1× 4mm Tape
1× DVD-ROM
Rackmount		 2× 18GB Disks (540-4178)
2× 4 mm Tape
Rackmount		 2× 18GB Disks (540-4178)
2× 18GB Disks (595-5471)
Rackmount
SG-XMTST1-H2D1T1 SG-XMTST1-H2T2 SG-XMTST1-H4
2× 18GB Disks (540-4178)
1× 4mm Tape
1× DVD-ROM
Server Top		 2× 18GB Disks (540-4178)
2× 4 mm Tape
Server Top		 2× 18GB Disks (540-4178)
2× 18GB Disks (595-5471)
Server Top
SG-XMT1-H2D2
2× 18GB Disks (540-4178)
2× DVD-ROM
Rackmount



Table Legend
[F] = Field Replaceable Unit (FRU)

CODE PART # DESCRIPTION
1
-
-
-
-
-
-
-
-
-		 540-4523 [F]
375-3020
370-4380
370-4384
530-2932
530-2933
530-2952
530-2953
530-2963

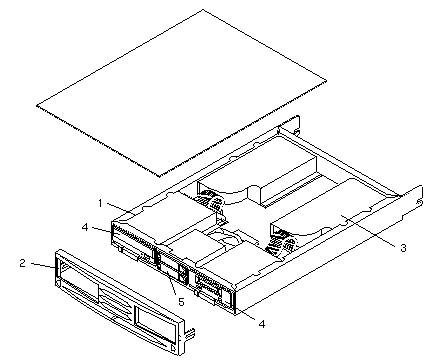

540-4490		 Mediatray Assembly/FRU w/o Front Bezel
Motherboard (replaced 501-5743)
Disk Drive Adapter Board (replaced 501-5744)
SCSI Loop LED Board (replaced 501-5807)
SCSI Loop Cable
Power/Fault LED Cable
80-Pin, 9" Ribbon Cable
80-Pin, 4" Ribbon Cable
Disk Drive Power LED Cable
Chassis Assembly
1
1
2		 540-4556
540-4523 [F]
540-4494 [F]		 Mediatray Assembly/FRU with Front Bezel
Mediatray Assembly/FRU without Front Bezel
Front Bezel Assembly/FRU
3 300-1471 [F] Power Supply, Type A155
4
-
-
-		 595-5471 [F]
599-2398
340-6476
540-4177 [F]		 18GB 10000RPM Disk Drive Assembly/FRU
18GB 10000RPM Disk Drive Assembly
Drive Mounting Bracket
18GB 10000RPM Disk Drive Assembly
4
-
-
-		 595-5472 [F]
599-2397
340-6476
390-0027 [F]		 20-40GB 4 mm DDS-4 Assembly/FRU
20-40GB 4 mm DDS-4 Assembly
Drive Mounting Bracket
20-40GB 4 mm DDS-4, Medium Grey
4
-
-
-		 595-5473 [F]
599-2396
340-6476
390-0025 [F]		 DVD-ROM Assembly/FRU
DVD-ROM Assembly
Drive Mounting Bracket
DVD-ROM, Medium Grey
5 540-4178 [F] 18GB 10000RPM Disk Drive Assembly/FRU
NS 595-6778
340-6480
340-6481
340-3482		 Media Tray Conversion Kit, Servertop to Rackmount (Option X5885A)
Left Inside Rail
RETMA Rail Mounting Bracket
Right Inside Rail
NS 595-6720 Sun Rack 900 Rack Mount Kit for D240 Media Tray (Option X6839A)
NS 806-4211 StorEdge D240 Installation, Operation, and Service
NS 806-6442 StorEdge D240 Removal and Replacement

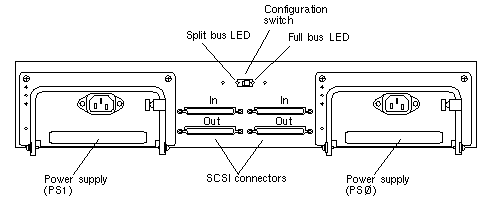

Rear View



StorEdge D240

SG-XMT2-H2D1T1 SG-XMT2-H2T2 SG-XMT2-H4
2× 36GB Disks (540-4520)
1× 4mm Tape
1× DVD-ROM
Rackmount		 2× 36GB Disks (540-4520)
2× 4 mm Tape
Rackmount		 2× 36GB Disks (540-4520)
2× 36GB Disks (595-6394)
Rackmount
SG-XMTST2-H2D1T1 SG-XMTST2-H2T2 SG-XMTST2-H4
2× 36GB Disks (540-4520)
1× 4mm Tape
1× DVD-ROM
Server Top		 2× 36GB Disks (540-4520)
2× 4 mm Tape
Server Top		 2× 36GB Disks (540-4520)
2× 36GB Disks (595-6394)
Server Top



Table Legend
[F] = Field Replaceable Unit (FRU)

CODE PART # DESCRIPTION
1
-
-
-
-
-
-
-
-
-		 540-4523 [F]
375-3020
370-4380
370-4384
530-2932
530-2933
530-2952
530-2953
530-2963
540-4490		 Mediatray Assembly/FRU w/o Front Bezel
Motherboard (replaced 501-5743)
Disk Drive Adapter Board (replaced 501-5744)
SCSI Loop LED Board (replaced 501-5807)
SCSI Loop Cable
Power/Fault LED Cable
80-Pin, 9" Ribbon Cable
80-Pin, 4" Ribbon Cable
Disk Drive Power LED Cable
Chassis Assembly
1
1
2		 540-4556
540-4523 [F]
540-4494 [F]		 Mediatray Assembly/FRU with Front Bezel
Mediatray Assembly/FRU without Front Bezel
Front Bezel Assembly/FRU
3 300-1471 [F] Power Supply, Type A155
4
-
-
-		 595-6394 [F]
599-2593
340-6476
540-4521 [F]		 36GB 10000RPM Disk Drive Assembly/FRU
36GB 10000RPM Disk Drive Assembly
Drive Mounting Bracket
36GB 10000RPM Disk Drive Assembly
4
-
-
-		 595-5472 [F]
599-2397
340-6476
390-0027 [F]		 20-40GB 4 mm DDS-4 Assembly/FRU
20-40GB 4 mm DDS-4 Assembly
Drive Mounting Bracket
20-40GB 4 mm DDS-4, Medium Grey
4
-
-
-		 595-5473 [F]
599-2396
340-6476
390-0025 [F]		 DVD-ROM Assembly/FRU
DVD-ROM Assembly
Drive Mounting Bracket
DVD-ROM, Medium Grey
5 540-4520 [F] 36GB 10000RPM Disk Drive Assembly/FRU
NS 595-6778
340-6480
340-6481
340-3482		 Media Tray Conversion Kit, Servertop to Rackmount (Option X5885A)
Left Inside Rail
RETMA Rail Mounting Bracket
Right Inside Rail
NS 595-6720 Sun Rack 900 Rack Mount Kit for D240 Media Tray (Option X6839A)
NS 806-4211 StorEdge D240 Installation, Operation, and Service
NS 806-6442 StorEdge D240 Removal and Replacement
