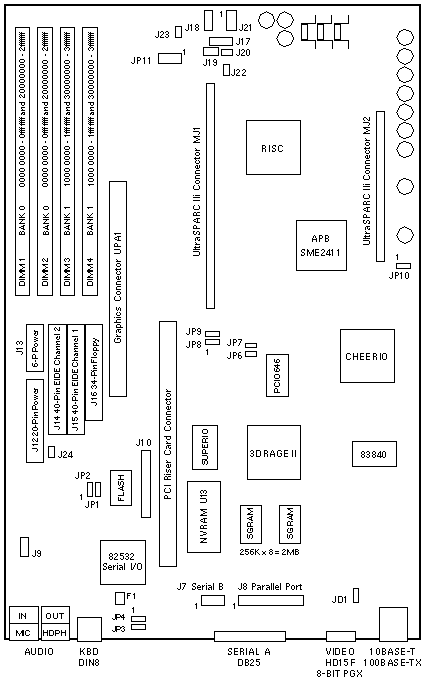

Ultra 5 / Ultra 10

A21 / A22

375-0009
w/o Memory
A21 270MHz
A22 300/333MHz

Jumper Settings

JUMPER PINS SETTING DESCRIPTION
JD1 1-2 Out Composite video synchronization
JP1 1-2
2-3		 In
In		 Select FPROM (default)
Select ROMBO
JP2 1-2
2-3		 In
In		 FPROM write protect (default)
FPROM write enable
JP3 1-2
2-3		 In
In		 RS-232
RS-423 (default)
JP4 1-2
2-3		 In
In		 RS-232
RS-423 (default)
JP6 1-2 N/A Not stuffed
JP7 1-2 N/A Not stuffed
JP8 1-2
2-3		 In
In		 Simba Clock Input Normal (default)
Simba Clock Input Test
JP9 1-2
2-3		 In
In		 Simba Clock Input Normal (default)
Simba Clock Input Test
JP10 1-2
2-3		 In
Out		 Bypass CPU in scan chain (default)
Include CPU in scan chain
JP11 1-10 N/A Not stuffed

Miscellaneous Connectors

CONNECTOR PINS DESCRIPTION
J7 1-10 Asynchronous Serial Port B
J8 1-26 Parallel Port
J9 1-4 CD-ROM Audio
J10 1-24 ROMBO
J14 1-40 EIDE Channel 2 (secondary)
J15 1-40 EIDE Channel 1 (primary)
J16 1-34 Floppy
J17 1-4 LED and Soft Reset Switch
J18 1-4 Speaker
J19 1-3 DC Fan Power
J20 1-8 Unknown
J21 1-8 JTAG
J22 1-2 Not stuffed
J23 1-2 Not stuffed
J24 1-2 Unknown

Graphics Notes

  1. Creator and Creator3D are not supported in the Ultra 5.
  2. Elite3D is not supported in the Ultra 5.
  3. Elite3D is supported in the Ultra 10.
  4. Elite3D-m6 was not sold with System Board 375-0009.

Memory Notes

  1. The minimum memory requirement is two DIMMs in any bank.
  2. The 16MB DIMM uses 10-bit column addressing and was not sold.
  3. The 32, 64, 128, and 256MB DIMMs use 11-bit column addressing.
  4. If 10-bit and 11-bit DIMMs are mixed, either pair will be ignored.
  5. The 256MB DIMMs are not supported in the Ultra 5.
  6. OBP >=3.25v3 is required when DIMMs manufactured by Micron are installed with 360MHz, 400MHz, or 440MHz CPU modules.

NVRAM Notes

  1. NVRAMs 525-1430 and 525-1817 include an M48T59 and a carrier.
  2. System Board 375-0009 was built with an AMP NVRAM socket.
  3. System Board 375-0009 shipped with NVRAM 525-1430.
  4. System Board 375-0115 is built with a Chupond NVRAM socket.
  5. NVRAM 525-1430 is compatible with the Chupond socket on 375-0115.
  6. NVRAM 525-1817 is not compatible with the AMP socket on 375-0009.

OBP Notes

  1. The flash PROM is soldered to the system board.
  2. Use the Flash PROM Programming Utility to update the flash PROM.
  3. BugIDs 4114343 and 4114784 prevent booting from Dual Ultra SCSI Controller Options X6540A and X6541A. Use the following workaround:
    ok nvedit
    0: dev /builtin-drivers
    1: alias pci1000,1000 pci1000,3
    2: device-end
    3: probe-all install-console banner Ctrl-C (to exit)
    ok nvstore
    ok setenv use-nvramrc? true
    ok reset-all
  4. OBP 3.11 version 9 fixes BugIDs 4114343 and 4114784.
  5. Modules 501-5568, 501-5148, and 501-5149 require OBP >=3.19v4.

Operating System Notes

  1. The minimum operating system is Solaris 2.5.1 Hardware: 11/97.
  2. The minimum Solaris 2.6 release is Solaris 2.6 Hardware: 3/98.

System Board Notes

  1. The 375-0009 shipped with Ultra 5 270MHz.
  2. The 375-0009 shipped with Ultra 10 300MHz and 333MHz.
  3. The 375-0009 is not tested with 360MHz, 400MHz, or 440MHz.
  4. Graphics quality BugID 4120186 is fixed on 375-0009-07.
  5. Serial communication BugID 4121884 is fixed on 375-0009-08.

References

  1. Sun Ultra 5/10 Service Manual, 805-0423.
  2. Sun Ultra 5/10 Product Note, 805-3647.
  3. Sun Ultra 5/10 Product Note, 805-4970.
  4. Sun Ultra 5 ShowMe How CD-ROM, 704-5753.
  5. Sun Ultra 10 ShowMe How CD-ROM, 704-5983.

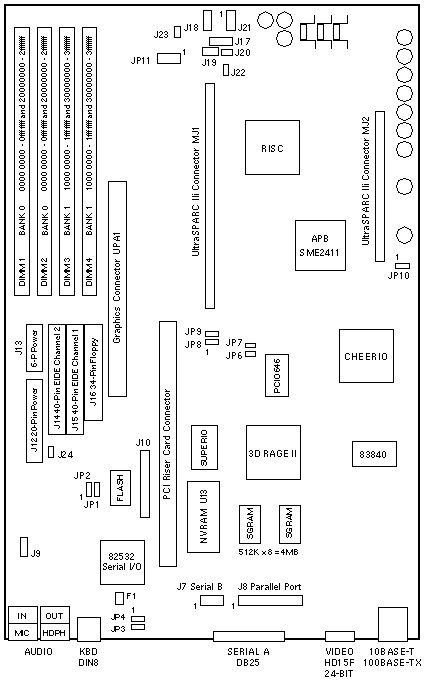

Ultra 5 / Ultra 10

A21 / A22

375-0066 375-0079 375-0115 375-3060
w/o Memory
A21 270/333MHz
A22 333/360MHz		 w/o Memory
A21 360/400MHz
A22 333/360/440MHz		 w/o Memory
A21 360/400MHz
A22 360/440MHz		 w/o Memory
A21 400MHz
A22 440MHz

Jumper Settings

JUMPER PINS SETTING DESCRIPTION
JP1 1-3 N/A Not stuffed
JP2 1-2
2-3		 In
In		 FPROM write protect (default)
FPROM write enable
JP3 1-2
2-3		 In
In		 RS-232
RS-423 (default)
JP4 1-2
2-3		 In
In		 RS-232
RS-423 (default)
JP8 1-2
2-3		 In
In		 Simba Clock Input Normal (default)
Simba Clock Input Test
JP9 1-2
2-3		 In
In		 Simba Clock Input Normal (default)
Simba Clock Input Test
JP10 1-2
2-3		 In
Out		 Bypass CPU in scan chain (default)
Include CPU in scan chain
JP11 1-10 N/A Not stuffed

Miscellaneous Connectors

CONNECTOR PINS DESCRIPTION
J7 1-10 Asynchronous Serial Port B
J8 1-26 Parallel Port
J9 1-4 CD-ROM Audio
J10 1-24 ROMBO
J14 1-40 EIDE Channel 2 (secondary)
J15 1-40 EIDE Channel 1 (primary)
J16 1-34 Floppy
J17 1-4 LED and Soft Reset Switch
J18 1-4 Speaker
J19 1-3 DC Fan Power
J21 1-8 JTAG
J22 1-2 Not stuffed
J23 1-2 Not stuffed
J24 1-2 Not stuffed

Chassis EZ Label Notes

  1. The EZ Label is located on the lower left side of the front bezel.
  2. The EZ Label includes a Service Code and the Serial Number.
  3. The Service Code identifies changes made to system FRUs.
    SERVICE
    CODE    		 CPU MODULE NVRAM Ultra 5
    SPEAKER    		 Ultra 10
    PCI RISER
    SPACERS    		 Ultra 5
    POWER
    SUPPLY    		 Ultra 10
    POWER
    SUPPLY
    None 375-0009 - 525-1430 370-3170 Not installed * 370-3162 370-3171
    PGX24 375-0066 - 525-1430 370-3170 Not installed * 370-3162 370-3171
    PGX24 375-0079 - 525-1430 370-3170 Not installed * 370-3162 370-3171
    SR PGX24 375-0066 501-5568 525-1430 370-3170 Installed 370-3162 370-3171
    SR PGX24 375-0079 501-5568 525-1430 370-3170 Installed 370-3162 370-3171
    SERIES 3 375-0079 - 525-1430 370-3170 Installed 370-3162 370-3171
    B SERIES 3 375-0115 - 370-3170 Installed 370-3162 370-3171
    C SERIES 3 375-0079 - 525-1430 370-4212 Do not install 370-3162 370-3171
    BC SERIES 3 375-0115 - 370-4212 Do not install 370-3162 370-3171
    BCD SERIES 3 375-0115 - 370-4212 Do not install 370-4326 370-4325
    DEV 23441 375-3060 - 100-6889 370-4212 Do not install 370-4326 370-4325
    *   Refer to FCO A0152 for details.
    NVRAM 525-1817 or 100-6889. The 100-6889 replaced 525-1817 in October 2000.

Graphics Notes

  1. PGX24 does not simultaneously support 8-bit and 24-bit graphics.
  2. Creator and Creator3D are not supported in the Ultra 5.
  3. Elite3D is not supported in the Ultra 5.
  4. Elite3D is supported in the Ultra 10.
  5. Elite3D-m6 was not sold with System Board 375-0066.

Memory Notes

  1. The minimum memory requirement is two DIMMs in any bank.
  2. The 16MB DIMM uses 10-bit column addressing and was not sold.
  3. The 32, 64, 128, and 256MB DIMMs use 11-bit column addressing.
  4. If 10-bit and 11-bit DIMMs are mixed, either pair will be ignored.
  5. The 256MB DIMMs are not supported in the Ultra 5.
  6. Memory speed is 60ns if 50ns and 60ns DIMMs are mixed.
  7. OBP >=3.25v3 is required when DIMMs manufactured by Micron are installed with 360MHz, 400MHz, or 440MHz CPU modules.

Module Notes

  1. Ultra 5 ships with 360MHz/512KB module 501-5148.
  2. Ultra 10 shipped with 360MHz/2MB module 501-5222.
  3. Ultra 5 was not shipped with the 440MHz Module.
  4. 333MHz Module 501-5568 requires OBP >=3.19v4.
  5. 360MHz Module 501-5148 requires OBP >=3.19v4.
  6. 440MHz Module 501-5149 requires OBP >=3.19v4.
  7. 400MHz Modules 501-5740 and 501-5741 require OBP >=3.25v1.

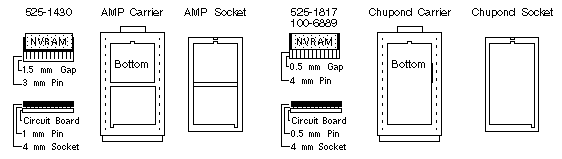

NVRAM Notes

  1. NVRAM 525-1430 includes an M48T59 and an AMP carrier.
  2. NVRAM 525-1817 includes an M48T59 and a Chupond carrier.
  3. NVRAM 100-6889 includes an M48T59 and a Chupond carrier.

    SYSTEM
    BOARD    		 NVRAM
    SOCKET    		 CHUPOND
    100-6889*    		 CHUPOND
    525-1817*    		 AMP
    525-1430*
    375-0009 AMP Not Compatible Not Compatible Compatible
    375-0066 AMP Not Compatible Not Compatible Compatible
    375-0079 AMP Not Compatible Not Compatible Compatible
    375-0079 Chupond Compatible Compatible Compatible
    375-0115 Chupond Compatible Compatible Compatible
    375-3060 Chupond Compatible Compatible Compatible
    *   The M48T59 without carrier is compatible with either NVRAM socket.
    Approximately 1200 375-0079 boards were built with a Chupond socket. See FIN I0596.

Operating System Notes

  1. The minimum operating system is Solaris 2.5.1 Hardware: 11/97.
  2. The minimum Solaris 2.6 release is Solaris 2.6 Hardware: 5/98.
  3. PGX24 Graphics on 2.5.1 HW: 11/97 and 2.6 HW: 5/98 requires Ultra 5/10 Software Supplement CD 704-5885-11.

System Board Notes

  1. The 375-0066 shipped with Ultra 5 270MHz and 333MHz.
  2. The 375-0066 shipped with Ultra 10 333MHz and 360MHz.
  3. The 375-0079 shipped with Ultra 5 360MHz and 400MHz.
  4. The 375-0079 shipped with Ultra 10 440MHz.
  5. The 375-0079 shipped with Ultra 5 270/333MHz after July 1999.
  6. The 375-0079 shipped with Ultra 10 333/360MHz after July 1999.
  7. The 375-0115 shipped with Ultra 5 360/400MHz after May 2000.
  8. The 375-0115 shipped with Ultra 10 360/440MHz after May 2000.
  9. The 375-3060 shipped with Ultra 5 400MHz after February 2002.
  10. The 375-3060 shipped with Ultra 10 440MHz after February 2002.

References

  1. Sun Ultra 5 Service Manual, 805-7763.
  2. Sun Ultra 10 Service Manual, 805-7764.
  3. Sun Ultra 5/10 Product Note, 805-4970.
