Ultra Enterprise 5000

E5000 / E5001 / E5002 / Netra i 5000 / Netra j 5000

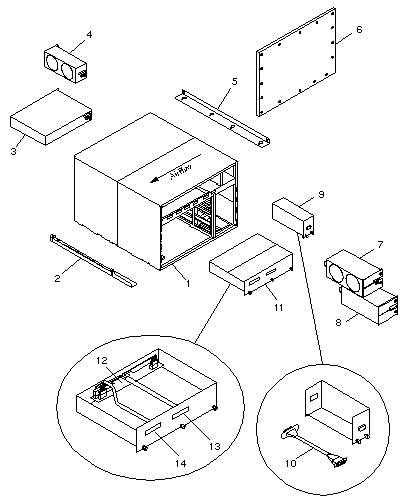

8-Slot Logic Enclosure

CODE PART # DESCRIPTION
1 540-2774 8-Slot Chassis Assembly 540-2774-01
2 340-3473
340-3474
Lower Left Chassis Mounting Bracket
Lower Right Chassis Mounting Bracket
3 300-1301 184 Watt Peripheral Power Supply
4 370-1812 AC Input and Fan Assembly/FRU
5 340-3169 Upper Chassis Mounting Bracket
6 501-2978 8-Slot Backplane
7
7
300-1260
300-1444
300 Watt Power/Cooling Module
300 Watt Power/Cooling Module
8 540-2593 Power/Cooling Module Filler Panel
9
10
370-2073
530-2214
Keyswitch Adapter Assembly/FRU
Keyswitch Adapter Cable
11
12
13
14
540-2713
501-2600
530-2218
530-2217
SCSI Adapter Tray Assembly/FRU
SCSI Adapter
DC Wire Harness
Internal SCSI Cable, 26 cm
NS 262-0759 Netra i 5000 Nameplate
NS 263-0146 E5000 Nameplate
NS 263-0234 HPC5000 Nameplate
NS 330-2014 Power Key (replaced 330-1651)
NS 530-1871 RJ45 to RJ45 Cable, 4M
NS 530-2093 Shielded RJ45 to RJ45 Cable, 4M
NS 530-2213 AC Input Power Cable, IEC320 C19-C20
NS 530-2223 SCSI Adapter Tray to SCSI Tray Power Cable
NS 530-2224 SCSI Adapter Tray to SCSI Tray SCSI Cable, 1.0M
NS 530-2225 Keyswitch Adapter to Keyswitch Assembly Cable
NS 530-2234 AC Sequencer to Fan Tray Sense Cable
NS 530-2235 AC Input and Fan Assembly to AC Sequencer Cable (obsolete)
NS 530-2325 AC Input and Fan Assembly to AC Sequencer Cable
NS 540-2592 Board Slot Filler Panel
NS 595-3780 MII to AUI Converter (requires AC power)

802-3845 Ultra Enterprise 4000/5000/6000 System Manual
