SPARCstorage [tm] Array Model 114

5206 5207
4.2GB Disk
7200 RPM
w/o SSA Tray
6 4.2GB Disks
7200 RPM
w/o SSA Tray
6517 6518 6519
SSA 114 Array
6 4.2GB Disks
7200 RPM
SSA 114 Array
18 4.2GB Disks
7200 RPM
SSA 114 Array
30 4.2GB Disks
7200 RPM

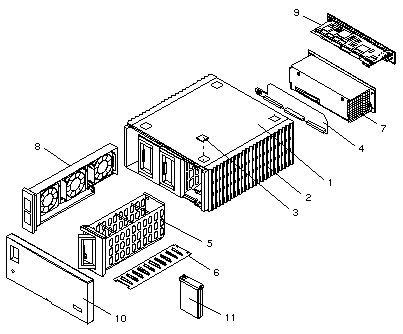

CODE PART # DESCRIPTION
NS
NS
1
2
3
NS
4
5
6
NS
NS
7
-
8
-
540-2985
540-2977
330-2078
330-2079
330-1999
330-2000
501-2029
540-2982
501-2010
540-2979
340-2670
540-2981
300-1098
540-2980
370-1885
Chassis Assembly without Covers, Medium Grey
Chassis Assembly with Covers, Medium Grey
Top and Bottom Cover, Medium Grey
Side Cover, Medium Grey
Cover Plug, Medium Grey
Foot
Backplane
Drive Tray Assembly/FRU, Medium Grey
Drive Tray Backplane
Chassis Subassembly
Chassis
Power Supply Assembly/FRU, Medium Grey
440 Watt Power Supply
Fan Tray Assembly/FRU, Medium Grey
120 × 38 mm Fan, 100CFM
-
-
260-6233
260-6604
Sun Logo
SPARCstorage Array Nameplate
9
-
-
-
501-4272
501-4271
501-2857
370-1426
Configured Array Controller, Medium Grey
Array Controller, Medium Grey (110MHz microSPARC II)
Battery Module
Fibre Channel Optical Module
10 540-2978 Front Bezel Assembly, Medium Grey
11
-
-
-
-
-
540-2937
240-2304
370-2367
370-2809
370-3403
540-2764
4.2GB Disk Drive FRU
#6-32 × 3/16 Button Screw, Torx
4.2GB Disk Drive, Seagate ST34371WC
4.2GB Disk Drive, Quantum VK45J05
4.2GB Disk Drive, IBM DDRS-34560
Disk Drive Mounting Bracket
NS 537-1004 Fibre Optical Cable, 2M
NS 537-1006 Fibre Optical Cable, 15M

801-2204 SPARCstorage Array User's Guide

801-2205 SPARCstorage Array Installation Manual

801-2206 SPARCstorage Array 100 Series Service Manual
