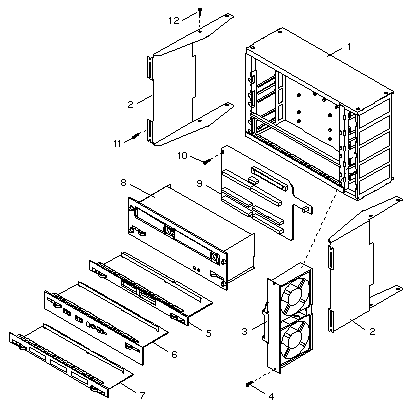

SPARCstorage [tm] Array Model 200

781

CODE PART # DESCRIPTION
1 540-2653 Chassis Assembly
1 340-3125 Chassis Enclosure
2 340-3103 Chassis Mounting Bracket
3
-
540-2610
370-1845
2-Fan Tray Assembly/FRU
DC Fan
4 240-1530 M3 × 6 mm Screw
5 501-2781 LCD Display
6
-
-
-
501-2786
501-2651
370-1426
501-2857
Configured Differential Array Controller
Differential SCSI Array Controller (40MHz)
Fibre Channel Optical Module
Battery Module
7 501-2670 Differential SCSI to Fibre Channel Adapter
8
-
540-2465
300-1098
Power Supply Assembly/FRU
440 Watt Power Supply
9 501-2664 Backplane
10 240-1559 M4 0.7 × 6 mm Screw
11 240-1953 #10-32 × 1/2" Screw
12 240-2186 M6 0.7 × 8 mm Screw
NS 261-4696 SPARCstorage Array 200 Logo
NS 530-1343 AC Power Cord, 240V
NS 530-1351 AC Power Cord, 10A/250V
NS 537-1004 Fibre Optical Cable, 2M
NS 537-1006 Fibre Optical Cable, 15M

801-2204 SPARCstorage Array User's Guide

802-2027 SPARCstorage Array 200 Installation Manual

802-2028 SPARCstorage Array 200 Series Service Manual
