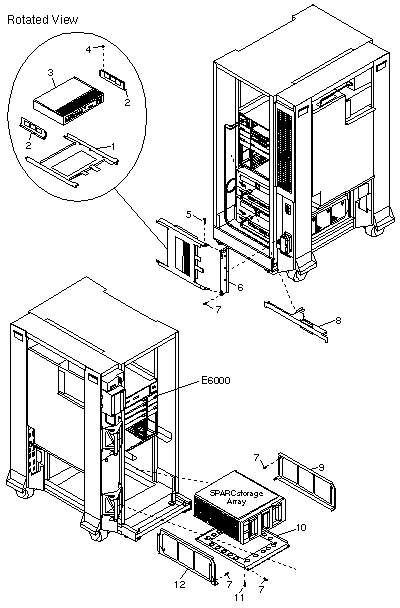

Ultra Enterprise 6000PDB

56-inch Data Center Cabinet

CODE PART # DESCRIPTION
1 340-3197 Annex Mounting Tray
2 340-2703 Annex Mounting Bracket
3 370-1434 Xylogics Micro Annex Terminal Concentrator
4 240-1373 M4 Nut
5 240-1372 M4 0.7 x 10 mm Screw
6 340-3196 Annex Mounting Tray Hinge Bracket
7 240-1953 #10-32 x 1/2" Screw
8 340-3533 SCI Cable Support Bracket
9 340-3235 Rack Mounting Bracket, Right
10 340-3239 Chassis Mounting Bracket
11 240-2248 M6 1.0 x 10 mm Screw
12 340-3237 Rack Mounting Bracket, Left
NS - SPARCstation 4
NS - SSA Model 214
NS 340-4275 SCI Switch Mounting Tray
NS 340-4276 SCI Switch Mounting Tray Hinge Bracket
NS 340-4346 SCI Switch Mounting Tray Hinge Bracket
NS 340-4347 SCI Switch Mounting Tray Hinge Bracket
NS 370-2345 Scalable Coherent Interface (SCI) Card
NS 370-2868 Scalable Coherent Interface (SCI) Card
NS 370-3146 Scalable Coherent Interface (SCI) Switch
NS 530-2149 Back-to-Back Ethernet Cable, 1.0M
NS 530-2150 Back-to-Back Ethernet Cable, 5.0M
NS 530-2151 RJ45-to-DB25 Serial Cable, 1.0M
NS 530-2152 RJ45-to-DB25 Serial Cable, 5.0M
NS 530-2265 AC Power Cord, Harting Han 6HsB to NEMA L6-30P
NS 530-2266 AC Power Cord, Harting Han 6HsB to IEC309
NS 530-2361 SCI Cable, 5M
NS 530-2362 SCI Cable, 10M
NS 537-1004 Fibre Optical Cable, 2M
NS 537-1006 Fibre Optical Cable, 15M

802-6786 Ultra Enterprise Cluster Service Manual
