AC Sequencer Power Requirements

300-1011 / 300-1027 / 300-1263
300-1264 / 370-1126 / 370-1155 / 370-1156

Operating Range

Nominal Voltage: 208, 220, 230, or 240 Volts AC
Operating Voltage: Single Phase 180-264 Volts AC
Frequency: 48-63 Hz
Current: 24 A maximum

AC Power Plug

The 230VAC power plug is a NEMA L6-30P. The 240VAC power plug is a Blue, 32A, IEC 309, with Ground at the 6-hour position.

230V Sequencer AC Power Cord

A 12 AWG Type SJO flexible cord rated at 25A when connected to utilization equipment with 2 current carrying conductors is used. Refer to Article 400-5 of the US National Electrical Code.

NEMA L6-30R / ANSI C73.75 230 Volt Power Receptacle

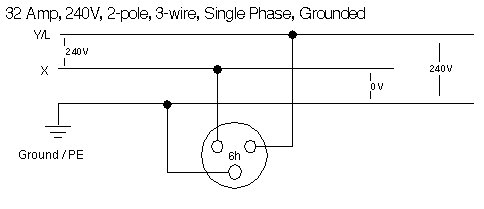

IEC 309 240 Volt Power Receptacle



Last updated: December 2, 1996
