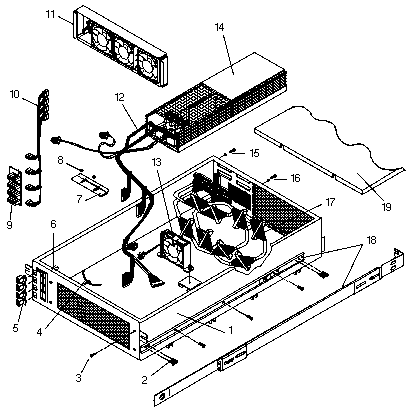

1.3GB IPI-2 Disk Subsystem

CODE PART # DESCRIPTION
1 340-2461 Chassis Enclosure
2 None #8-32 x 1/4" Pan Head Screw, Slide Rail to Chassis
3 240-1372 M4 0.7 x 10 mm Screw
4 230-1170 10" Tiestrap
5 150-1557 Address Select Switch
6 230-1256 Nylon Standoff, M4 x 25 mm
7 340-2466 Power Supply Mounting Bracket
8 240-1373 M4 Nut
9 501-1827 Remote LED Display Panel
10 530-1768 Address Select Switch Cable
11 540-2125 3-Fan Tray Assembly, 45 CFM
12 530-1764 DC Wire Harness
13 540-2126 DC Fan Assembly, 45 CFM
14 300-1085 268 Watt Power Supply
14 300-1096 269 Watt Power Supply
15 130-1080 Jack Socket
16 240-1872 Jackscrew
17 530-1753 Internal IPI I/O Cable
18
18
370-1385
370-1385
-01 Slide Rail Set, Inner 651.2 mm, Outer 742.7 mm
-03 Slide Rail Set, Inner 717.3 mm, Outer 742.7 mm
19 340-2465 Chassis Cover
NS None Cross-Drilled Top Cover Screw, M4 0.7 x 10 mm
NS None Top Cover Screw Retaining Clip
NS 240-1207 #10-32 x 1/2" Screw, Slide Rail to Rack
NS 370-1220 IPI Terminator
NS 530-1343 AC Power Cord, 240V
NS 530-1351 AC Power Cord, 230V
NS 530-1487 External IPI I/O Cable, 8.0M (obsolete) 1
NS 530-1518 External IPI I/O Cable, 2.0M (obsolete) 1
NS 530-1536 External IPI I/O Cable, 45 cm
NS 530-1788 External IPI I/O Cable, 2.0M
NS 530-1789 External IPI I/O Cable, 8.0M
NS
NS
NS
NS
NS
540-2127
370-1378
340-2464
330-1400
240-1185
1.3GB Disk Drive FRU
1.3GB Disk Drive, Seagate 975002-005, PA4F2
Disk Drive Mounting Bracket
Disk Drive Handle
#6-32 x 1/4" Screw, Disk Drive to Bracket

800-6676 1.3GB Tray and Disk Drive Install/ServiceManual
  1. IPI Cables without toroids, 530-1518 and 530-1487, can be used with the Sun-4/490.
