Micropolis 1588-15 (669MB)

5 1/4" 3600 RPM Single Ended SCSI
Sun-4/330/370/470

Options 561 / 563 / 565 / 566

370-1319 370-1326 555-1151
FS0013-03-5
Black Bezel
Green LED
3 1/4" Height		 FS0019-01-6
No Bezel
No LED
3 1/4" Height		 FS0019-01-6
No Bezel
No LED
w Bracket

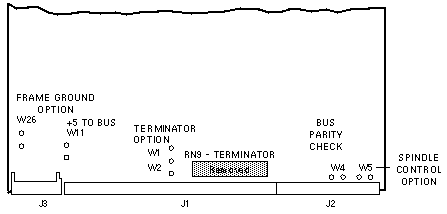

Bottom View

Note

All other jumpers on this board are set by the manufacturer. Do NOT change these settings.

End View


Option Jumper Settings

JUMPER SETTING DESCRIPTION
W5 Out Spindle starts at power on
W4 Out Enable parity detection
W1
W2
W11		 In
Out
Out		 Drive provides internal terminator power
W28 Out Frame ground not connected to logic ground

External Storage and Expansion Modules

JUMPER SETTING DESCRIPTION
W5 Out Spindle starts at power on
W4 Out Enable parity detection
W1
W2
W11		 In
Out
Out		 Drive provides internal terminator power
W28 In Frame ground connected to logic ground

Address Jumper Settings

J2 Multi-function Connector

PIN SETTING DESCRIPTION
0,1, 2 Out Target 0
0 In Target 1
1 In Target 2
0,1 In Target 3

References

  1. 5-1/4" SCSI Disk Drive Installation and Configuration for Sun Office Pedestals, 813-2048-11.
  2. Revised Removal/Replacement Procedures for Sun ESM and EEM Storage Units, 814-3044-01.
