GP Graphics Processor

Sun-4/150/260/280/330/350/360/370/380

501-1055



UNIX ID: /dev/gpone0a-d

Power
GP

16.4 Amps @ +5Vdc
82.0 Watts

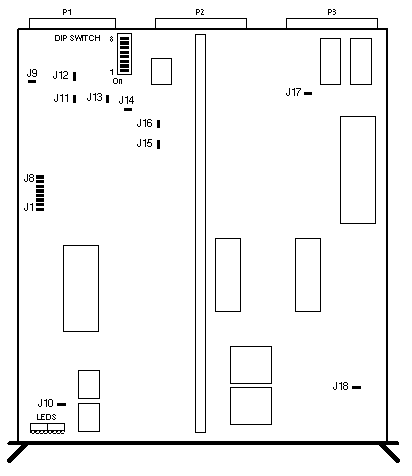

Jumper and Switch Settings

JUMPER SETTING DESCRIPTION
J1 Out GP board ID bit 3
J2 In GP board ID bit 4
J3 In GP board ID bit 2
J4 Out GP board ID bit 5
J5 Out GP board ID bit 1
J6 Out GP board ID bit 6
J7 In if GB is installed GP board ID bit 0
J8 Out GP board ID bit 7
J9 Out* GND test point
J10 Out* GND test point
J11 Out* PP halt test point
J12 Out* VP halt test point
J13 Out* Manual reset test point
J14 In Main clock connect
J15 Out VP free-running CLK test point
J16 Out PP free-running CLK test point
J17 Out* GND test point
J18 Out GND test point
*Hardwired

DIP SWITCH SETTING DESCRIPTION
UR11-1 On VME address bit 17
UR11-2 Off VME address bit 16
UR11-3 On VME address bit 23
UR11-4 On VME address bit 22
UR11-5 Off VME address bit 21
UR11-6 On VME address bit 20
UR11-7 On VME address bit 19
UR11-8 On VME address bit 18

Notes

  1. The Sun-2/160 Power Supply requires RC Network 540-1300-01.
  2. The default base address is 0x210000.

Reference

Hardware Installation Manual for the Sun-2/130 and Sun-2/160, 800-1144.


Last updated: December 2, 1996
