955

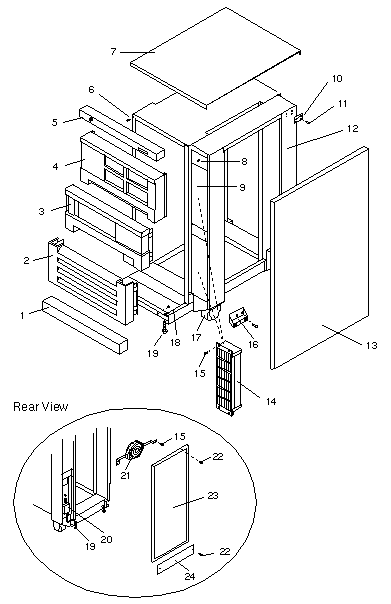

56-inch Expansion Cabinet

CODE PART # DESCRIPTION
1 340-1884 Anti-Tilt Panel
2 540-1857 Vented Panel Assembly
3 540-1947 1/2" Tape Panel Assembly with Cutout
4 540-2252 Front Panel with 4 Tape Drive Cutouts
5 540-1859 Cap Panel Assembly
6 240-1630 #6-32 Ballstud
7 340-1840 Top Panel
8 540-2393 Keyswitch Assembly (replaced 540-1285)
9 340-1913 Filler Panel, 5.2" x 19"
10 340-1885 Side Restraint Bracket, Upper
11 240-1372 M4 0.7 x 10 mm Screw
12 540-1718 Frame Assembly
13 340-1848 Side Panel
14 370-1983 230/240V Blower
15 240-1953 #10-32 x 1/2" Screw (replaced 240-1207)
16 340-1886 Side Restraint Bracket, Lower
17 240-1717 Caster (replaced 370-1210)
18 240-1373 M4 0.7 Kepnut
19 230-1418 Leveler Foot (replaced 230-1181)
20 300-1263 230V Power Sequencer (replaced 370-1155)
20 300-1264 240V Power Sequencer (replaced 370-1156)
21 540-1929 230V Fan Assembly 1
21 540-1930 240V Fan Assembly 1
22 240-1655 #10-32 x 3/4" Screw
23 340-1845 Rear Panel
24 340-2047 Kick Panel
NS 230-1166 Cable Tie 5.5", Reusable
NS 230-1170 Cable Tie 10", Reusable
NS 340-2138 Ballast, 30 lbs
NS 530-1303 Remote Keyswitch Cable

800-6371 56-inch Data Center Exp Cabinet Service Manual
  1. The Fans are not installed in Expansion Cabinets built after June 1993 unless a Front Load Tape Drive is ordered as a factory installed option. The Fans were replaced by Blower 370-1983 in July 1995.


Last updated: December 2, 1996
