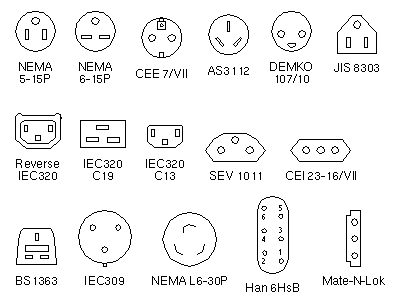

AC Power Cords

PART # DESCRIPTION USAGE
180-1010 IEC 320 - Reverse IEC 320, Coiled (obs) Acc Pwr
180-1117 IEC 320 - Reverse IEC 320 Acc Pwr
180-1097 IEC 320 - NEMA 5-15, 15A/125V USA
180-1125 IEC 320 - pigtail, 6A/250V Acc Pwr
180-1126 IEC 320 - NEMA 6-15, 10A/250V (obs) V3 Sequencer
180-1142 IEC 320 - NEMA 5-15, 15A/125V USA
180-1146 IEC 320 - NEMA 5-15, 10A/125V USA
180-1176 IEC 320 - BS 1363, 10A/250V (obs) UK
180-1177 IEC 320 - CEE 7/7, 10A/250V (obs) France
180-1177 IEC 320 - CEE 7/7, 10A/250V (obs) Germany
180-1177 IEC 320 - CEE 7/7, 10A/250V (obs) Sweden
180-1178 IEC 320 - SEV 1011, 10A/250V (obs) France
180-1178 IEC 320 - SEV 1011, 10A/250V (obs) Germany
180-1178 IEC 320 - SEV 1011, 10A/250V (obs) Switzerland
180-1179 IEC 320 - NEMA 5-15, 10A/250V USA
180-1179 IEC 320 - NEMA 5-15, 10A/250V Japan
180-1183 Y IEC 320 - NEMA 6-15, 10A/250V V3 Sequencer
180-1184 Y IEC 320 - Reverse IEC 320, 10A/250V V4 Sequencer
180-1189 IEC 320 - NEMA 6-15, 10A/250V V3 Sequencer
180-1190 IEC 320 - Reverse IEC 320, 10A/250V V4 Sequencer
180-1234 IEC 320 - 107/10-1973, 10A/250V (obs) Denmark
180-1235 IEC 320 - CEI 23-16/VII, 10A/250V (obs) Italy
180-1236 IEC 320 - AS 3112, 10A/250V (obs) Australia
180-1683 IEC 320 - Reverse IEC 320, 10A/250V, 1.5M V4 Sequencer
180-1688 IEC 320 - Reverse IEC 320, 10A/250V, 2.5M V4 Sequencer
180-1732 90° IEC 320 - 90° Reverse IEC 320, .75M E150 Internal
530-1343 IEC 320 - Reverse IEC 320, 10A/250V V4 Sequencer
530-1351 IEC 320 - NEMA 6-15, 10A/250V V3 Sequencer
530-1370 IEC 320 - NEMA 5-15, 15A/125V, Grey USA
530-1371 IEC 320 - Reverse IEC 320, 15A/125V, Grey PBox Acc Pwr
530-1410 IEC 320 - CEE 7/7, 6A/250V, Grey Europe
530-1411 IEC 320 - BS 1363, Grey UK
530-1583 IEC 320 - SEV 1011, 10A/250V, Grey Switzerland
530-1584 IEC 320 - CEI 23-16/VII, 10A/250V, Grey Italy
530-1585 IEC 320 - 107/10-1973, 10A/250V, Grey Denmark
530-1586 IEC 320 - AS 3112, 10A/250V, Grey Australia
530-1604 IEC 320 - CEE 7/7, 10A/250V, Grey S. America
530-1657 90° IEC 320 - NEMA 5-15, 10A/125V, Grey USA
530-1663 90° IEC 320 - CEE 7/7, 10A/250V, Grey France
530-1663 90° IEC 320 - CEE 7/7, 10A/250V, Grey Germany
530-1664 90° IEC 320 - SEV 1011, 10A/250V, Grey France
530-1664 90° IEC 320 - SEV 1011, 10A/250V, Grey Germany
530-1664 90° IEC 320 - SEV 1011, 10A/250V, Grey Switzerland
530-1665 90° IEC 320 - CEI 23-16/VII, 10A/250V, Grey Italy
530-1666 90° IEC 320 - 107/10-1973, 10A/250V, Grey Denmark
530-1667 90° IEC 320 - AS 3112, 10A/250V, Grey Australia
530-1668 90° IEC 320 - CEE 7/7, 10A/250V, Grey S. America
530-1671 90° IEC 320 - BS 1363, 6A/250V, Grey UK
530-1817 IEC 320 - CEE 7/7, 10A/250V France
530-1817 IEC 320 - CEE 7/7, 10A/250V Germany
530-1817 IEC 320 - CEE 7/7, 10A/250V Sweden
530-1818 IEC 320 - SEV 1011, 6A/250V France
530-1818 IEC 320 - SEV 1011, 6A/250V Germany
530-1818 IEC 320 - SEV 1011, 6A/250V Switzerland
530-1819 IEC 320 - 107/10-1973, 10A/250V Denmark
530-1820 IEC 320 - CEI 23-16/VII, 10A/250V Italy
530-1821 IEC 320 - BS 1363, 10A/250V UK
530-1822 IEC 320 - AS 3112, 10A/250V Australia
530-2073 Type C7 - BS1363A, 5A/250V UK
530-2074 Type C7 - CEE 7/7, 2.5A/250V Europe
530-2075 Type C7 - SAA/2, 7.5A/250V Australia
530-2076 Type C7 -NEMA 1-15, 15A/125V USA
530-2122 Type C7 - JIS-C 8303 Japan
530-2160 IEC320 C19 to IEC320 C20, 610 mm SC2000
530-2188 IEC320 C19 to IEC320 C20, 1050 mm SC2000
530-2197 IEC320 C13 to AMP Mate-N-Lok E5000/E6000
530-2197 IEC320 C13 to AMP Mate-N-Lok Option 956
530-2213 IEC320 C19 to IEC320 C20, 2500 mm E5000/E6000
530-2264 AMP Mate-N-Lok to Y IEC320 C13 E5000/E6000
530-2264 AMP Mate-N-Lok to Y IEC320 C13 Option 956
530-2265 Han 6HsB to NEMA L6-30P, Option 3800 E5000/E6000
530-2265 Han 6HsB to NEMA L6-30P, Option 3800 Option 956
530-2266 Han 6HsB to Blue 32A IEC309, Option 3848 E5000/E6000
530-2266 Han 6HsB to Blue 32A IEC309, Option 3848 Option 956
530-2301 IEC320 C13 to Blue 32A IEC309, Option 389 Danish E4000

Warning
The Schuko CEE 7/7 plug is not grounded if used with the Danish Afsnit 107 electrical outlet.




Last updated: December 2, 1996
