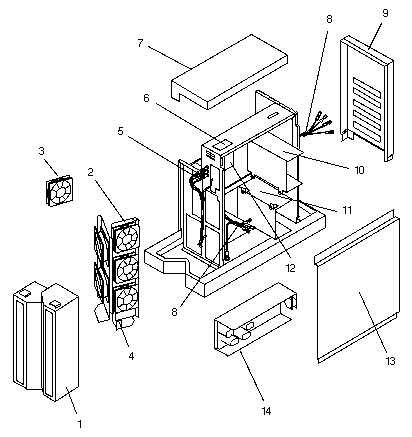

Sun-4/330

5-Slot VMEbus Logic Enclosure

CODE PART # DESCRIPTION
NS 260-3617 SPARCstation 330 Logo
NS 260-3818 SPARCserver 330 Logo
1 330-1178 Rear Cover
NS 330-1180 Cable Retainers
2 540-1760 Fan and Bracket Assembly
NS
NS
3
3
4		 530-1465
530-1468
540-2029
540-1788
540-1811		 DC Harness, Power Supply to Peripherals & Fans 1
Fan Harness 1
Fan Assembly, Variable Speed, 105 CFM
Fan Assembly, 100 CFM (obsolete)
AC Receptacle
5 530-1470 AC Input Harness
6
NS
NS
NS		 340-1772
501-1432
501-1416
120-1608		 SCSI Terminator Access Panel
SCSI IN Terminator PCB
SCSI OUT Terminator PCB
220/330 Terminator
7 540-1789 Top Cover Assembly
8 530-1469 AC Harness, Internal 2
9
NS		 540-1787
340-2500		 Front Cover Assembly
Front Cover Air Baffle
10
NS		 540-1758
340-1783		 Upper Drive Tray Assembly (obsolete) 3
Drive Tray
10
NS		 540-2133
340-2497		 Upper Drive Tray Assembly
Drive Tray
11
NS		 540-1757
340-1782		 Lower Drive Tray Assembly (obsolete) 3
Drive Tray
11
NS		 540-2132
340-2498		 Lower Drive Tray Assembly
Drive Tray
12 150-1129 AC Line Filter
13 340-1792 Left Cover
14 300-1034 520 Watt Power Supply (obsolete)
NS 150-1323 AC On/Off Switch
NS 150-1346 External Terminator, 50-Pin SCSI-2
NS 150-1785 External Active Terminator, 50-Pin SCSI-2
NS 240-1605 Caster Ball
NS 330-1180 Cable Retainers
NS 340-1676 3U Top Cover
NS 340-1677 6U Filler Panel
NS 340-1784 6U Side Cover
NS 340-1793 Right Cover
NS 340-1800 Half-Height Tape Filler Panel
NS 370-1205 150MB Tape Drive, Half-Height, QIC-150
NS 370-1206 150MB Tape Drive, Full-Height, QIC-150
NS 370-1230 327MB Disk Drive, Imprimis/CDC 77777126
NS 370-1319 669MB Disk, Micropolis 1588-15
NS 370-1319 669MB Disk, Maxtor XT-8760
NS 501-1354 5-Slot VMEbus Backplane, Pressfit
NS 530-1434 External SCSI Cable, 50-Pin SCSI-2, 45 cm (obs)
NS 530-1466 Internal SCSI Cable
NS 530-1826 External SCSI Cable, 50-Pin SCSI-2, 45 cm, Ferrites
NS 540-1800 Caster Plate and Stud
  1. Wire harnesses <=530-1465-03 and <=530-1468-02 are not field repairable or replaceable. These lower revisions are soldered together. Replace both harnesses upon failure. Wire harnesses >=530-1465-04 and >=530-1468-03 are pluggable.
  2. Wire harness 530-1469 is not field repairable or replaceable.
  3. The 1.3GB SCSI Disk does not fit into Tray 540-1757 or 540-1758.

Last updated: December 2, 1996
