Sun Blade[tm] 100 Workstation - Full Components List

Boot PROM
Cables
Communication
CPU Module
Disks
Ethernet
Graphics
IDPROM
    Input Devices
Memory
Miscellaneous
Power
Removable Media
SCSI
System Board
Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system

Boot PROM
Socket Manufacturing
Part #
Patch
U40 370-4116 111179
Cables
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
X901A 595-3503 530-1884 [F] External SCSI Cable, HD68 to HD68, 80cm n/a
X902A 595-3504 530-1885 [F] External SCSI Cable, HD68 to HD68, 2M n/a
X903A F530-2115 530-2115 [F] External SCSI Cable, HD50 to HD68, 1.2M n/a
X904A F530-2228 530-2228 [F] External SCSI Cable, HD50 to HD68, 2M n/a
X3856A 595-4851 530-2383 [F] External Fast-wide SCSI Cable, HD68 to HD68, 80cm, w/ Power Cord n/a
X3857A 595-4852 530-2115 [F] External Fast-narrow SCSI Cable, HD50 to HD68, 1.2M, w/ Power Cord n/a
n/a n/a 370-4209 [F] Internal Cable Service Kit (see Exploded View) n/a
n/a n/a 370-5266 DB15 Video Extension Cable n/a
n/a n/a 370-5267 DB9 Serial Extension Cable n/a
Communication
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
X1155A 605-1611 370-2728 [F] High Speed Serial Interface (HSI/P) 2.0 n/a
X1157A 605-1623 501-3028 [F] SunATM-155/MFiber 4.0 n/a
X1158A 605-1624 501-3027 [F] SunATM-155/UTP 4.0 n/a
X2156A 605-1644 375-0100 [F] Serial Asynchronous Interface (SAI/P) 3.0 n/a
X1152A [S] 605-1608 370-2811 [F] FDDI/P SAS 2.0 n/a
X1153A [S] 605-1607 370-2812 [F] FDDI/P DAS 2.0 n/a
X2154A [S] 605-1643 375-0073 [F] Token Ring Interface (TRI/P) 5.0 n/a
CPU Module
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
n/a n/a 100-6471 [F] 500MHz UltraSPARC IIe Module 100-7270 [F]
n/a n/a 100-7270 [F] 500MHz UltraSPARC IIe Module n/a
Disks
Option # Top Level
Part #
Assembly
FRU
Manufacturing
Part #
Description Substitute
Part #
X6174A 370-4348 n/a 370-4327 [F] Seagate ST320420A
(20.4GB - 7200 RPM Ultra ATA/66)
Barracuda ATA II
370-5560 [F]*
370-4327 [F] Seagate ST320414A
(20.1GB - 7200 RPM Ultra ATA/100)
Barracuda ATA III
370-4327 [F] Seagate ST320011A
(20.1GB - 7200 RPM Ultra ATA/100)
Barracuda ATA IV
* Replace 370-4327 with 370-5560 only if the disk is being mirrored. If a 370-4327 disk of either 20.1 or 20.4 GB is not being mirrored, it should be replaced with 370-4327.
n/a n/a n/a 370-5520 upgraded Seagate ST315310A
(20.1GB - 7200 RPM Ultra ATA/100)
Barracuda ATA III
n/a
X6172A [S] 595-5674 n/a 370-4154 [F] Seagate ST315320A
(15.3GB 7200 RPM Ultra ATA/66)
n/a
370-4154 [F] Seagate ST315310A
(15.3GB 7200 RPM Ultra ATA/100)
Ethernet
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
X1033A 595-4498 501-5019 [F] SunFastEthernet (FE/P) 501-4359 [F]
X1034A 605-1594 501-5406 [F] Sun Quad FastEthernet (QFE/P) 501-4366 [F]
X1141A 605-1601 501-4373 [F] Gigabit Ethernet 2.0 (GBE/P) n/a
X1150A 595-5812 501-5902 [F] Sun GigaSwift Ethernet UTP n/a
X1151A 595-5773 501-5524 [F] Sun GigaSwift Ethernet MMF n/a
X2069A [S] 595-5414 501-5426 [F] Gigabit Ethernet FC-AL/P n/a
Graphics
Option # Top Level
Part #
Manufacturing
Part #
Description Previous
Part #
Substitute
Part #
X3668A 595-5146 370-3753 [F] PGX32 8/24-Bit Color Frame Buffer n/a n/a
X3768A 605-4639 370-4362 [F] PGX64 8/24-Bit Color Frame Buffer n/a n/a
X3684A [S] 605-1647 375-3052 [F] Expert3D Lite PCI Frame Buffer 375-0116 [F] n/a
IDPROM
Socket Manufacturing
Part #
Component Type Host ID
U48 100-6889 [F] 12C IDPROM 8xxxxxxx
Input Devices
Option # Top Level
Part #(s)
Manufacturing
Part #(s)
Description Substitute
Part #(s)
n/a n/a 370-1678 [F] SunMicrophone II n/a
X3682A [S] 595-5526 370-4161 [F] Sun 1394 Visual Collaboration Kit n/a
Memory
Option # Top Level
Part #
Manufacturing
Part #
Option Description Substitute
Part #
X6991A 595-5621 370-4149 [F] (128MB) 128MB (1 × 128MB SDRAM DIMM) n/a
X6992A 595-5622 370-4150 [F] (256MB) 256MB (1 × 256MB SDRAM DIMM) n/a
X6993A 595-5623 370-4151 [F] (512MB) 512MB (1 × 512MB SDRAM DIMM) n/a
Miscellaneous
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
X2131A 605-1648 375-0131 [F] SunPCi II 600MHz, 64MB memory n/a
X2132A 605-4646 375-3051 [F] SunPCi IIpro 733MHz coprocessor card n/a
X7042A 595-5694 370-4294 [F] SunPCi II 128MB memory expansion n/a
X7044A 595-5695 370-4295 [F] SunPCi II 256MB memory expansion n/a
X7045A 595-6010 370-4430 [F] SunPCi IIpro 512MB memory expansion n/a
n/a n/a 370-4208 [F] PCI Riser Board n/a
n/a n/a 370-3933 [F] Smart Card Reader (single-sided) 370-4666 [F]
X1131A-64.2 [S] 605-1641 375-0095 [F] SunPCi 400MHz n/a
X7041A [S] 370-3870 370-3800 [F] SunPCi 64MB memory expansion n/a
X7035A [S] 370-3860 370-3801 [F] SunPCi 128MB memory expansion n/a
X1131A-64.1 [S] 605-1630 375-0075 [F] SunPCi 300MHz n/a
Power - DC
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
n/a n/a 370-4206 [F] Mitac 200 Watt Power Supply n/a
Removable Media
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
n/a n/a 370-4211 [F] Triple Density Floppy [standard configuration] n/a
n/a n/a 370-4152 [F] 48X EIDE CD-ROM [standard configuration] n/a
X6173A [S] 595-5675 370-4153 [F] 12X DVD-ROM 370-4439 [F]
X6175A [S] 595-6086 370-4439 [F] 16X DVD-ROM n/a
SCSI
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
X1032A 595-4258 501-5656 [F] Single-Ended Ultra/Wide SCSI (SunSwift PCI) 501-2741 [F]
X2222A 595-5624 501-5727 [F] Dual FastEthernet + Dual SCSI PCI Adapter n/a
X5010A 595-5377 375-0097 [F] Single-Channel Single-Ended Ultra/Wide SCSI (PCI) n/a
X6540A 595-4399 375-0005 [F] Dual Single-Ended Ultra/Wide SCSI (PCI) n/a
X6541A 595-4414 375-0006 [F] Dual Differential Ultra/Wide SCSI (PCI) n/a
System Board
Option # Manufacturing
Part #
Description Substitute
Part #
n/a 375-0096 [F] * 0MB FRU w/o UltraSPARC IIe
FAB R0G + FCC A chassis tray
n/a
n/a 375-3061 [F] * 0MB FRU w/o UltraSPARC IIe
FAB R01 + FCC B chassis tray
375-3092 [F]
375-3106 [F]
375-3123 [F]
n/a 375-3092 [F] * 0MB FRU w/o UltraSPARC IIe (ECO WO_22711)
FAB R01 + FCC A chassis tray
375-3061 [F]
375-3106 [F]
375-3123 [F]
n/a 375-3106 [F] 0MB FRU w/o UltraSPARC IIe
FAB R0A w/o chassis tray
375-3061 [F]
375-3092 [F]
375-3123 [F]
n/a 375-3123 [F] 0MB FRU w/o UltraSPARC IIe
FAB R0G w/o chassis tray
375-3061 [F]
375-3092 [F]
375-3106 [F]
* See Notes on compatibility of these system boards.

Table Legend
[F] = Field Replaceable Unit (FRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system

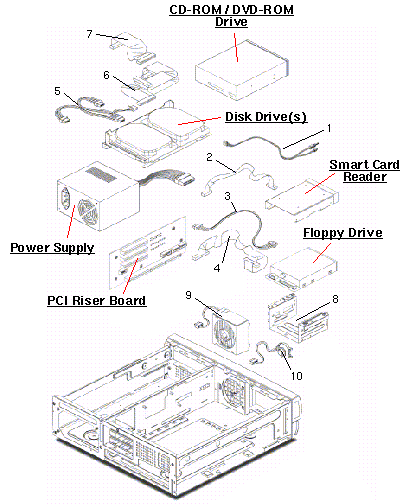

Exploded View



Table Legend
[F] = Field Replaceable Unit (FRU)

CODE
MANUFACTURING
PART #
DESCRIPTION

1
2
3
4
5
6
7
370-4209 [F]
370-4210 [F]
None
None
None
None
None
None
Cable Service Kit
Power Switch and LED Cable
Internal Smart Card Reader Cable
Floppy Power Cable
Floppy Data Cable
IDE (Disk and CD) Power Cable
Primary IDE Cable
Secondary IDE Cable
8 None Floppy and Smart Card Reader Bracket
9 370-4207 [F] Fan Assembly
10 370-4293 [F] Speaker Assembly
NS 530-2068 [F] DB25 to 36-Pin Centronics Parallel Cable, 5M
NS 530-2093 [F] Shielded RJ45 to RJ45 Cable, 4M
