Cable
|
Connection Points
|
Base Power Cable
Part # 530-2841
|
Origin: P15
to PDB-J8
Destination: P16
to Base Backplane-J0100 |
I2C Segment 5 Cable (Part 1)
Part # 530-2840
|
Origin: P18
to I/O Board-J3805
Destination: P19
to Base Backplane-J0800 |
FCAL (Motherboard to Base Backplane)
Loop A Cable
Part # 530-2623
|
Origin: On
Motherboard - A to FCAL(IN), B to FCAL(OUT)
Destination: On
Base Backplane - A to J0201, B to J0200 |
Expansion
Power Cable / Backplane
ID Cable
Part # 530-2863
|
Origin (Expansion Power
Cable): P42 to PDB-J7
Destination (Expansion Power Cable):
P43 to Expansion Backplane-J0100
and
Origin (Backplane ID Cable): P1
to Base Backplane-J0801
Destination (Backplane ID Cable):
P2 to Expansion Backplane-J0801
|
I2C Segment 5 Cable (Part 2)
Part # 530-2840
|
Origin: P18
to I/O Board-J3805
Destination: P20
to Expansion Backplane-J0800
Note: P18
already plugged in for Base Backplane operation. Secondary PCI fan may
need to be removed to get at P20 (Tie-wrapped on rear wall to left of
Expansion Backplane)
|

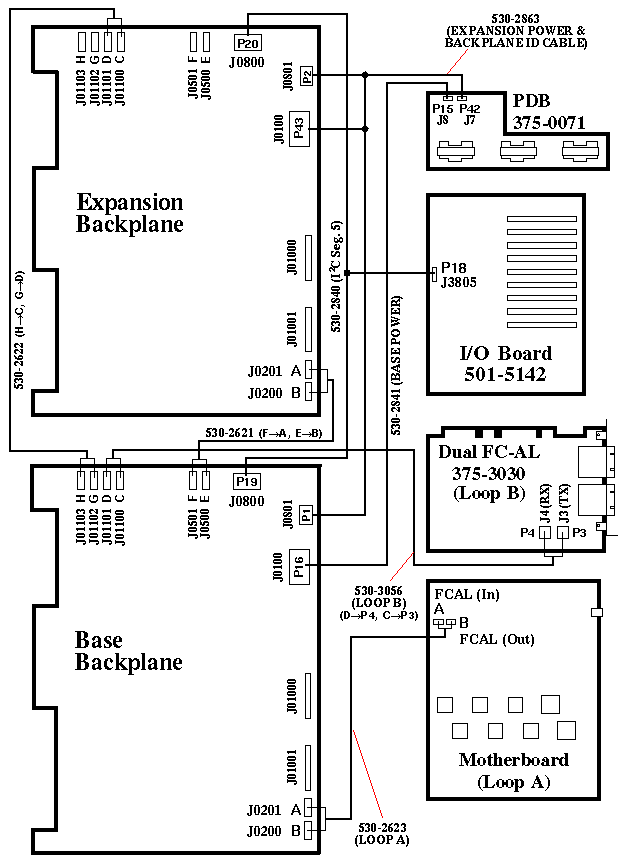

FCAL
(Base to Expansion) Backplane
Loop A Cable
Part # 530-2621
|
Origin: On
Base Backplane - E to J0500, F to J0501
Destination: On
Expansion Backplane - A to J0201, B to J0200 |
FCAL (Base to Expansion) Backplane
Loop B Cable
Part # 530-2622
|
Origin: On
Base Backplane - G to J01102, H to J01103
Destination: On
Expansion Backplane - C to J01100, D to J01101 |
FCAL (X6727A (375-3030) card to Base Backplane)
Loop B Cable
Part # 530-3056
|
Origin:
On
X6727A (375-3030) card - P3 to J3(TX); P4 to J4(RX)
Destination:
On
Base Backplane - C to J01100, D to J01101 |
