Netra[tm] CT 410

Codename: Makaha

N09-410
5-Slot cPCI Logic Enclosure



Table Legend
[F] = Field Replaceable Unit (FRU)

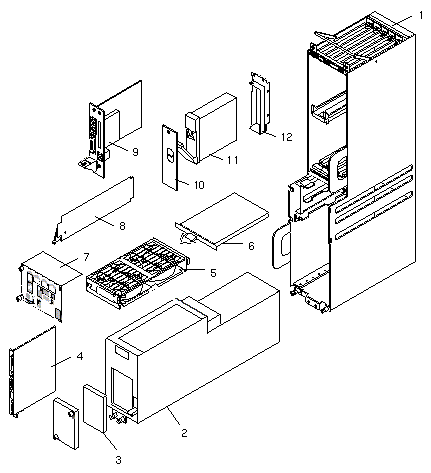

CODE PART # DESCRIPTION
1
-
-
-
-
540-5026 [F]
340-6326
501-6121
501-5625
540-4390 [F]
5-Slot cPCI Diskfull Drawer Assembly/FRU 1
3U Mounting Bar
5-Slot cPCI Backplane
Extension Board for Front CPU Termination Board
Drawer Assembly
1
-
-
-
540-5390 [F]
501-6121
501-5625
540-4390 [F]
5-Slot cPCI Diskless Drawer Assembly/FRU 2
5-Slot cPCI Backplane
Extension Board for Front CPU Termination Board
Drawer Assembly
2
2
3
300-1535 [F]
300-1543 [F]
250-1672
420 Watt DC Input Power Supply Type D148
420 Watt AC Input Power Supply Type A174
Power Supply Air Filter, Option 7221
4 501-6438 [F] Front CPU Transition Board
5 540-4391 [F] Fan Tray
6 250-1671 Air Filter, Option 7221
7 540-5011 [F] System Status Panel
8 501-6118 [F] System Control Board
9 501-6123 [F] 3U Alarm Board
10 340-6394 Disk Drive Slot Cover
11 540-4689 [F] 36.4GB 10000 RPM NEBS Disk Drive Assembly/FRU
12 540-4398 [F] Disk Drive Bracket
NS Unknown Front Bezel

816-2482 Netra CT Server Service Manual
1 Supports one Disk Drive and one 3U Alarm. Disk Drive is not included.
2 Does not support a Disk Drive or 3U Alarm.

Boards

PART # DESCRIPTION
375-3025 [F]
375-3026 [F]
375-3114
375-3125
512MB Memory Module, Single Wide, 2"×4"
1GB Memory Module, Double Wide, 4"×5"
2GB Memory Module, Double Wide
1GB Memory Module, Single Wide
501-6403 [F]
501-6358 [F]
375-3025 [F]
501-6417
501-6358 [F]
375-3026 [F]
501-6417
501-6358 [F]
375-3114
1GB 650MHz CP2140 CPU
0MB 440MHz CP2140 CPU FRU
512B Memory Module, Double Wide
2GB 650MHz CP2140 CPU
0MB 440MHz CP2140 CPU FRU
1GB Memory Module, Double Wide
2GB 650MHz CP2140 CPU
0MB 440MHz CP2140 CPU FRU
2GB Memory Module, Double Wide
501-6438 [F]
501-5618 [F]
501-6437 [F]
501-6479 [F]
501-6124 [F]
Front CPU Transition Board, Netra CT 410
Front CPU Transition Board, Netra CT 810
Rear CPU Transition Board, Netra CT 410/810
Rear CPU Transition Board w PIM/PMC, Netra CT 410/810
Rear Alarm Transition Board, Netra CT 410/810
340-6399
340-6410
340-6483
340-6484
370-4003
340-7367
340-7368
Rear Power Input Filler Panel
Front Power Input Filler Panel
Rear Empty Drawer Filler Panel
Front Empty Drawer Filler Panel
cPCI Filler Panel (replaced by 340-7367 and 340-7368)
cPCI Rear Filler Panel (fails EMI - use 370-4003)
cPCI Front Filler Panel (fails EMI - use 370-4003)
