Ultra[tm] 2 Workstation - Full Components List

Boot PROM
Communication
CPU Module
Disks
Ethernet
Fibre Channel
Graphics
IDPROM
Input Devices
    Memory
Miscellaneous
Power
Removable Media
SCSI
System Board
Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system

Boot PROM
Socket Manufacturing
Part #
Patch
U2003 525-1414 104169
Communication
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
X1008A [S] 605-1291 501-1931 [F] Serial Parallel Controller (SPC/S) n/a
X1012A [S] 605-1319 501-2603 [F] SunISDN-BRI/SBI expansion kit 501-1849 [F]
X1014A [S] 605-1438 501-1932 [F] Token Ring Interface (TRI/S) n/a
X1019A [S] 605-1439 501-1725 [F] High Speed Serial Interface (HSI/S) n/a
X1025A [S] 605-1571 370-3142 [F] FDDI/S SAS 5.0 n/a
X1026A [S] 605-1572 370-3143 [F] FDDI/S DAS 5.0 n/a
X1060A [S] 605-1543 501-2794 [F] SunATM-155/MFiber 2.0 n/a
X1061A [S] 605-1545 501-2795 [F] SunATM-155/UTP 2.0 n/a
X1064A [S] 605-1544 501-2864 [F] SunATM-622/MFiber n/a
X1142A [S] 605-1610 370-3142 [F] FDDI/S Single-Attach SBus Adapter (SAS) 6.0 370-4045 [F]
X1143A [S] 605-1609 370-3143 [F] FDDI/S Dual-Attach SBus Adapter (DAS) 6.0 370-4046 [F]
X1144A [S] 605-1616 501-1932 [F] Token Ring Interface/SBus (TRI/S) 4.0 n/a
X1145A [S] 605-1612 501-1725 [F] High Speed Serial Interface/SBus (HSI/S) 3.0 n/a
X1146A [S] 595-5036 501-1931 [F] Serial Parallel Controller (SPC/S) 3.0 n/a
X1147A [S] 605-1620 501-2794 [F] SunATM-155/MFiber SBus Adapter 4.0 n/a
X1148A [S] 605-1621 501-2795 [F] SunATM-155/UTP SBus Adapter 4.0 n/a
X1149A [S] 605-1622 501-2864 [F] SunATM-622/MFiber Dual Wide Adapter 4.0 n/a
CPU Module
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
Previous
Part #
X1187A [S] 595-4008 501-2942 [F] 167MHz UltraSPARC Module n/a 501-2702
X1188A [S] 595-4009 501-4791 [F] 200MHz UltraSPARC Module n/a 501-3041 [F]
X1191A [S] 595-4849 501-4849 [F] 300MHz UltraSPARC II Module n/a 501-4196 [F]
X1193A [S] 595-5231 501-5445 [F] 400MHz UltraSPARC II Module n/a 501-5541 [F]
Disks
Option # Top Level
Part #
Assembly FRU Manufacturing
Part #
Description Substitute
Part #
X5153A [S] 595-3808 540-2730 [F]

Axx FRU
w/ R Bracket 330-1951
w/ L Bracket 330-1952
370-2040 Seagate ST32550WC
(2.1GB - 7200 RPM)
n/a
370-1956 IBM DFHS-32160-S2S
(2.1GB - 7200 RPM)
n/a
540-2936 [F]

Spud Bracket FRU
w/ 1" Bracket 540-3024
370-2808 Quantum VK22J05
(2.1GB - 7200 RPM)
n/a
370-2365 [F] Seagate ST32171WC
(2.1GB - 7200 RPM)
370-2366 [F]
X5175A [S] 595-3894 540-3171 [F]

Spud Bracket FRU
w/ 1" Bracket 540-3024
370-2842 IBM DCAS-32160
(2.1GB - 5400 RPM)
n/a
X5214A [S] 595-4082 540-2938 [F]

Spud Bracket FRU
w/ 1" Bracket 540-3024
370-2367 [F] Seagate ST34371WC
(4.2GB - 7200 RPM)
370-2368 [F]
370-2809 Quantum VK45J05
(4.2GB - 7200 RPM)
370-2368 [F]
370-3412 [F] Fujitsu MAB3045SC
(4.2GB - 7200 RPM)
370-2368 [F]
370-3403 IBM DDRS-34560
(4.2GB - 7200 RPM)
n/a
X5229A [S] 595-4716 540-3704 [F]

Spud Bracket FRU
w/ 1" Bracket 540-3024
370-3413 [F] Fujitsu MAB3091SC
(9.1GB - 7200 RPM)
370-2369
370-2370 [F]
370-3404 IBM DDRS-39130
(9.1GB - 7200 RPM)
370-3413 [F]
370-3595 [F]
390-0004 [F]
370-3595 [F] Seagate ST39173WC
(9.1GB - 7200 RPM)
370-3404
370-3413 [F]
390-0004 [F]
390-0004 [F] Fujitsu MAE3091LC
(9.1GB - 7200 RPM)
370-3404
370-3595 [F]
390-0007 IBM DNES-309170
(9.1GB - 7200 RPM)
n/a
Ethernet
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
X467A [S] n/a 595-3780 [F] MII to AUI Converter n/a
X1049A [S] 605-1597 501-5443 [F] Sun Quad FastEthernet 2.0 (SQFE/S) 501-4837 [F]
X1058A [S] 605-1520 501-2062 [F] Quad Ethernet Controller (SQEC/S) n/a
X1059A [S] 605-1535 501-2919 [F] SunFastEthernet 2.0 n/a
X1140A [S] 605-1602 501-4375 [F] Gigabit Ethernet 2.0 (GBE/S) n/a
Fibre Channel
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
X1057A [S] 595-3213 501-2069 [F] SBus Optical Channel Host Adapter (SOCHA) n/a
X6730A [S] 595-4303 501-5266 [F] FC-AL SBus Host Adapter (FC100/S) 501-5202 [F]
501-3060 [F]
Graphics
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
X1085A [S] 595-3018 501-3019 [F] SunVideo 501-2232 [F]
X1094A [S] 595-3091 501-1845 [F] ZX 24-Bit Color Frame Buffer n/a
X3652A [S] 595-4071 501-3129 [F] Creator3D Series 1 (FFB) 24-Bit Frame Buffer n/a
X3653A [S] 595-4043 501-4127 [F] Creator Series 1 (FFB) 24-Bit Frame Buffer n/a
X3655A [S] 595-3217 501-2955 [F] TurboGXplus 8-Bit Frame Buffer 501-2253 [F]
X3657A [S] 595-4499 501-4173 [F] Creator3D Series 2 (FFB2) 24-Bit Frame Buffer n/a
X3661A [S] 595-4606 501-4790 [F] Creator3D Series 3 (FFB2+) 24-Bit Frame Buffer n/a
X3666A [S] 595-4878 540-3058 [F] Elite3D-m6 24-Bit Frame Buffer n/a
X3667A [S] 595-5192 540-3979 [F] Elite3D-m6 24-Bit Frame Buffer n/a
X3671A [S] 595-4606 501-4790 [F] Creator3D Series 3 (FFB2+) 24-Bit Frame Buffer n/a
X3675A [S] 595-4499 501-4173 [F] Creator3D Series 2 (FFB2) 24-Bit Frame Buffer n/a
X7110A [S] 595-3865 501-2922 [F] TurboGX 8-Bit Frame Buffer 501-2325 [F]
IDPROM
Socket Manufacturing
Part #
Component Type Host ID
U2006 525-1417 [F] 48T59 NVRAM 80xxxxxx
Input Devices
Option # Manufacturing
Part #(s)
Description Substitute
Part #(s)
X180A [S] 595-1865 SunButtons 32-key function I/O device n/a
X190A [S] 595-1737 SunDials 8-dial interactive graphics I/O for 3-D n/a
X486A [S] 595-3723 [F] CCD Camera II n/a
X488A [S] 595-3723 [F] SunVideo SBus Kit n/a
Memory
Option # Top Level
Part #
Manufacturing
Part #
Option Description Substitute
Part #
X1021A [S] 605-1308 370-1401 [F] SBus Prestoserve NFS Accelerator n/a
X7001A [S] 595-3810 501-2479 [F] (16MB) 32MB (2 × 16MB DIMM) n/a
X7002A [S] 595-3811 501-2622 [F] (32MB) 64MB (2 × 32MB DIMM) n/a
X7003A [S] 595-3812 501-2480 [F] (64MB) 128MB (2 × 64MB DIMM) n/a
X7004A [S] 595-3813 501-3136 [F] (128MB) 256MB (2 × 128MB DIMM) n/a
X7043A [S] 595-5409 501-5691 [F] (64MB) 128MB (2 × 64MB DIMM), 5V n/a
X1075A [S] 595-4488 375-0012 [F] 32MB NVRAM Board n/a
Miscellaneous
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
X1129A-4.2-P [S] 605-1574 501-4230 [F] SunPC 133-MHz 5x86 n/a
X1030A [S] 595-3375 501-2367 [F] PCMCIA Adapter n/a
Power - DC
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
n/a n/a 300-1342 [F] Zytec EP071235-C1 350 Watt Power Supply 300-1309
300-1315 [F]
Removable Media
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
X3860A [S] 595-4316 530-2137 [F] Internal SCSI Cable, 660 mm n/a
X6003A [S] 595-4004 370-3212 [F] Triple Density Floppy n/a
X6105A [S] 595-4029 370-2018 [F] 2.5GB QIC 1/4" Tape Drive n/a
X6156A [S] 595-4005 370-2102 [F] SunCD 4 370-2816 [F]
X6163A [S] 595-4047 370-2816 [F] SunCD 12 n/a
X6167A [S] 595-4746 370-3415 [F] SunCD 32 n/a
X6207A [S] 595-4006 370-1922 [F] 7-14GB 8 mm Tape Drive n/a
X6212A [S] 595-4384 370-2881 [F] 7-14GB 8 mm Tape Drive n/a
X6260A [S] 595-4007 370-2176 [F] 4-8GB 4 mm DDS-2 Tape Drive 370-2375 [F]
X6282A [S] 595-4163 370-2377 [F] 12-24GB 4 mm DDS-3 Tape Drive n/a
X6295A [S] 595-5431 390-0028 [F] 20-40GB 4 mm DDS-4 Tape Drive n/a
SCSI
Option # Top Level
Part #
Manufacturing
Part #
Description Substitute
Part #
X1018A [S] 605-1568 501-2739 [F] Single-Ended Fast/Wide (SunSwift) n/a
X1052A [S] 595-2731 501-1869 [F] Differential SCSI/Ethernet (DSBE/S) n/a
X1053A [S] 595-2724 501-2981 [F] Fast SCSI-2/Buffered Ethernet Card (FSBE/S) 501-2015 [F]
X1054A [S] 595-2286 501-1869 [F] SCSI/Ethernet (SBE/S) n/a
X1055A [S] 595-2167 501-1850 [F] SBus SCSI Host Adapter (SSHA) n/a
X1062A [S] 595-3257 370-1704 [F] Differential Fast/Wide SCSI-2 Host Adapter (DWIS/S) n/a
X1063A [S] 595-3258 370-1703 [F] Single-Ended Fast/Wide SCSI-2 Host Adapter (SWIS/S) n/a
X1065A [S] 595-4187 370-2443 [F] Differential Ultra/Wide SCSI Host Adapter (UDWIS/S) n/a
System Board
Option # Manufacturing
Part #
Description Substitute
Part #
n/a [S] 501-3132 [F] 200/300/400MHz n/a
n/a [N] 501-2487 200MHz (pre-FCS) n/a
n/a [N] 501-4772 (ECO released 12/97, not manufactured) 501-3132 [F]
n/a [N] 501-4826 (ECO released 12/97, not manufactured) n/a

Table Legend
[F] = Field Replaceable Unit (FRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system

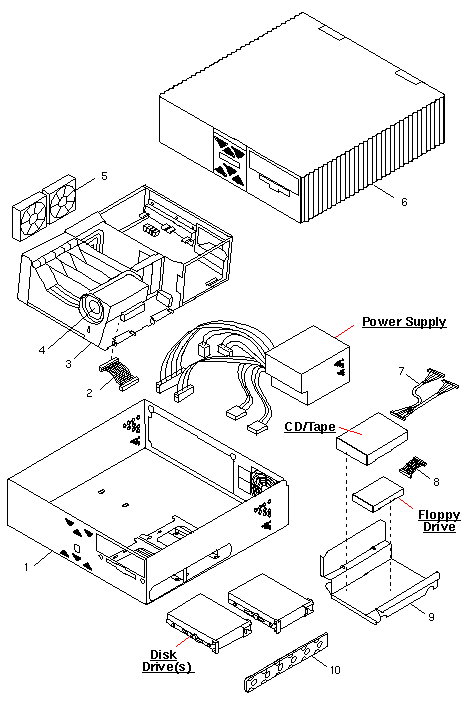

Exploded View


Table Legend
[F] = Field Replaceable Unit (FRU)

CODE
MANUFACTURING
PART #
DESCRIPTION
1
-
-
2
3
4
5
540-2598
501-2487
501-3132 [F]
530-1451 [F]
540-2603 [F]
370-1579 [F]
None
Base Assembly
0MB CPU FRU (obsolete)
0MB CPU FRU
Internal SCSI Cable, 70 mm
CPU Shroud Assembly/FRU
Speaker
92 × 25 mm Fan
6 540-2597 Top Cover
7 530-2137 [F] Internal SCSI Cable, 660 mm
8 530-2138 [F] Floppy Cable, 320 mm
9 340-3184 Removable Media Mounting Bracket
10 330-1840 Disk Drive Access Cover
NS 263-0104 Ultra 2 Creator3D Nameplate
NS 263-0105 Ultra 2 Creator Nameplate
NS 263-0107 Ultra 2 Server Nameplate
NS 260-6233 [F] Sun Logo
NS 240-1878 [F] #6-32 × 5/16" Screw
NS 240-2323 #6-32 × 5/8" Screw
NS 240-1530 [F] M3 × 6 mm Screw
NS 240-1394 [F] M3 × 8 mm Screw
NS 330-1841 5.25" Filler Panel
NS 330-1842 3.5" Filler Panel
NS 340-3187 SBus Filler Panel
NS 530-1871 [F] RJ45 to RJ45 Cable, 4M
NS 530-2068 [F] DB25 to 36-Pin Centronics Parallel Cable, 5M
NS 530-2093 [F] Shielded RJ45 to RJ45 Cable, 4M
NS 595-3780 [F] MII to AUI Converter (requires AC power)
