Environmental Test (env4test)

env4test exercises and validates the I2C bus on the Sun Netra trademark CT systems.

There are nineteen subtests in env4test that test and report the status of the following:

Continuity LED flash test
Slot LED flash test
Disk LED flash test
Power supply LED flash test
Fan LED flash test
System controller board LED flash test
Front transition module LED flash test
Green LED's blink register
Register read/write test, 3N march
Register read/write test, 5N march
Register read/write test, Crosstalk
FRU presence test
I/O slot health test
I/O slot reset test
Power remote on/off test
Fan speed switch test
CPU temperature status display test
Power supply status display test
Fan status display test

env4test is not scalable.

env4test Options

To reach the dialog box below, right-click on the test name in the System Map and select Test Parameter Options. If you do not see this test in the System Map, you might need to expand the collapsed groups, or your system may not include the device appropriate to this test. Refer to the SunVTS User's Guide for more details.

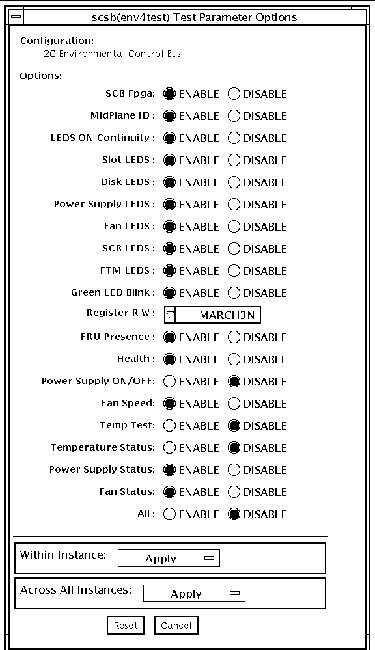

FIGURE 21-1 env4test Test Parameter Options Dialog Box

TABLE 21-1 `env4test` Options
`env4test` Options	Description
LEDS ON Continuity test	Asserts all LEDs in the system display panel except for the PDU LEDs. This verifies the ability of the System Controller Board (SCB) to perform sequential writes while automatically advancing the address pointer internally.
Slot LEDS test	Repeatedly flashes all I/O slot LEDs.
Disk LEDS test	Repeatedly flashes all disk LEDs.
Power Supply LEDS test	Repeatedly flashes all power supply LEDs.
Fan LEDS test	Repeatedly flashes all fan LEDs.
SCB LEDS test	Repeatedly flashes all system controller board LEDs.
FTM LEDS test	Repeatedly flashes all front transition module LEDs.
Green LED Blink test	Tests hardware functionality that enables blinking for the green LEDs.
Register R/W test	A pattern write test to interrupt registers and LED registers (read/write) to isolate the stuck-at-1, stuck-at-0, and cross talk fault categories. The test execution time from shortest to longest is: 3N march, 5N march, (XTALK) Cross Talk.
FRU Presence test	Reads and displays FRU presence signals.
Health test	Reads and displays I/O slot health signals.
Reset test	Sequentially resets individual I/O slots.
Power Supply test	Tests the remote power on/off signals in systems with redundant power supplies. This test is only valid when 2 power supplies are inserted in a single drawer.
Fan test	Tests the functionality of fan speed changes.
Temperature Status test	Identifies the current temperature of the CPU, the ambient temperature of the system, and verifies that the temperature is within normal operating parameters. This test is enabled in all modes.
Power Supply Status test	Detects assertion of Presence signal in the SCB and reads the power supply status register via the I2C bus. The encoded bit status is displayed to the console.
Fan Status test	Detects assertion of Presence signal in the SCB and reads the fan status register via the I2C bus. The encoded bit status is displayed to the console.
All tests	Executes all tests sequentially.

env4test Test Modes

env4test supports Connection and Functional tests as described in the table below.

TABLE 21-2 `env4test` Test Modes
Test Mode	Supported?	Description
Functional (offline)	Yes	Tests the disk back panel, front panel LEDs, and fan control circuitry. Also uses the same functionality as Online mode and Connection test mode.

env4test Command-Line Syntax

TABLE 21-3 `env4test` Command-Line Syntax
Argument	Explanation
`dev` =raw_device_name	Specifies the name of the raw device to test.
`ContinuityTest=` Enable\|Disable	Turns on all LED's except for PDU.
`SlotLedsTest=` Enable\|Disable	Enables or disables the slot LED flash test.
`DiskLedsTest=` Enable\|Disable	Enables or disables the disk LED flash test.
`PsupplyLedsTest=` Enable\|Disable	Enables or disables the power supply LED flash test.
`FanLedsTest=` Enable\|Disable	Enables or disables the fan LED flash test.
`ScbLedsTest=` Enable\|Disable	Enables or disables the scb LED flash test.
`FtmLedsTest=` Enable\|Disable	Enables or disables the ftm LED flash test.
`GreenLedsBlinkTest=` Enable\|Disable	Enables or disables the green LED hardware blink test.
`RegTest=` 3N\|5N\|xtalk	Enables or disables the 3N, 5N, cross talk register test.
`FRUPresenceTest=` Enable\|Disable	Enables or disables the FRU presence test.
`HealthTest=` Enable\|Disable	Enables or disables the health test.
`ResetTest` = Enable\|Disable	Enables or disables the reset test.
`PowerSupplyTest=` Enable\|Disable	Enables or disables the power supply remote on/off test.
`FanTest=` Enable\|Disable	Enables or disables the fan speed change test.
`TempStatus=` Enable\|Disable	Enables or disables display of CPU temperature.
`PsupplyStatus=` Enable\|Disable	Enables or disables display of power supply status.
`FanStatus=` Enable\|Disable	Enables or disables display of fan status.
AllTests= Enable\|Disable	Performs all tests in sequence.

Note Note - 64-bit tests are located in the sparcv9 subdirectory: /opt/SUNWvts/bin/sparcv9/testname. If a test is not present in this directory, then it may only be available as a 32-bit test. For more information refer to 32-Bit and 64-Bit Tests.
