C H A P T E R

C H A P T E R 55

System Test (systest)

systest checks the CPU board by exercising the I/O, memory, and CPU channels simultaneously as threads. There is no quick test option for systest ; it is a CPU stress test.

systest Options

To reach the dialog box below, right-click on the test name in the System Map and select Test Parameter Options. If you do not see this test in the System Map, you might need to expand the collapsed groups, or your system may not include the device appropriate to this test. Refer to the SunVTS User's Guide for more details.

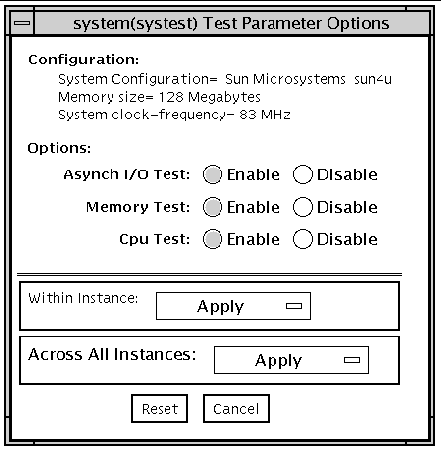

FIGURE 55-1 systest Test Parameter Options Dialog Box

systest Test Modes

TABLE 55-1 `systest` Test Modes
Test Mode	Supported?	Description
Connection	No	Not supported.
Functional (Offline)	Yes	Runs the full set of tests.

systest Command-Line Syntax

/opt/SUNWvts/bin/systest standard_arguments -o -io= Enable|Disable
-mem= Enable|Disable , -cpu= Enable|Disable , -dev= system

TABLE 55-2 `systest` Command Line Syntax
Argument	Description
`io=` Enable\|Disable	Enables or Disables the Asynch I/O Test
`mem=` Enable\|Disabel	Enables or Disables the Memory Test
`cpu=` Enable\|Disable	Enables or Disables the Cpu Test
`dev=` system	Specifies the pseudo device name

Note Note - 64-bit tests are located in the sparcv9 subdirectory: /opt/SUNWvts/bin/sparcv9/testname. If a test is not present in this directory, then it may only be available as a 32-bit test. For more information refer to 32-Bit and 64-Bit Tests.
