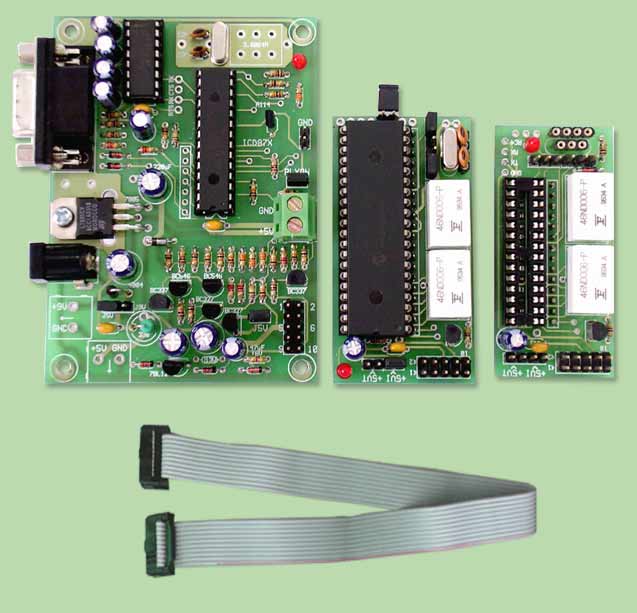

[ F01 ] MPLAB_ICD  v.2 Header(40,28 Pin)
  • MPLAB ICD utilizes the utilize the In Circuit Debugging capability of the PIC16F87X and Microchip’s in-Circuit Serial Programming protocol.
    To both program and act as an in-circuit debugger for the PIC16FX devices. It operates under MPLAB ICE , connects to an application , and runs like the PIC16F87X microcontroller in the design.
    We have revise Software and Hardware as follows.
    • Increase Relay for RB7 , RB6 and MCLR of PIC16F87X for be use lessen problem which can use the MPLAB ICD is Loader and Run get nice.
    • Increase part On/Off VDD for in case of use MPLAB ICD become devices program PIC16F87x.
    • Increase circuit Power Supply on Board MPLAB ICD and can use electric current on board go to use at Tar get Board .
    • Choose use electric current form MPLAB ICD or Target Board by use Jumper.
    • Change value X-TAL and C.Load By use Socket.
    • Choose use OSC form Target Board or MPLAB ICD Header.
Select Jump Employable of MPLAB ICD
Mode
RLYON
J5V
+5VI
+5VT
1. Debug by: have not the Target Board.
JUMP
JUMP
JUMP
JUMP
2. Debug by: have the Target Board and use electricity form Target in order to MPLAB ICD.
JUMP
JUMP
JUMP
JUMP
3. Debug by: have the Target Board and Target Board use electricity form MPLAB ICD ( Header ).
JUMP
JUMP
JUMP
JUMP
4. Debug by: have the Target Board and Target Board not use electricity form MPLAB ICD.
JUMP
JUMP
JUMP
NO
5. Capable of devices program PIC16F87X.
NO
NO
JUMP
JUMP
6. Loader and Run have not the Target Board.
NO
JUMP
JUMP
JUMP
7. Loader and Run have the Target Board and use electricity form MPLAB ICD -> Header in order to Target Board.
NO
JUMP
JUMP
JUMP
8. Loader and Run have the Target Board and use electricity form Target Board in order to Header
NO
X
NO
JUMP
X = JUMP or no JUMP ,
NO = no JUMP
