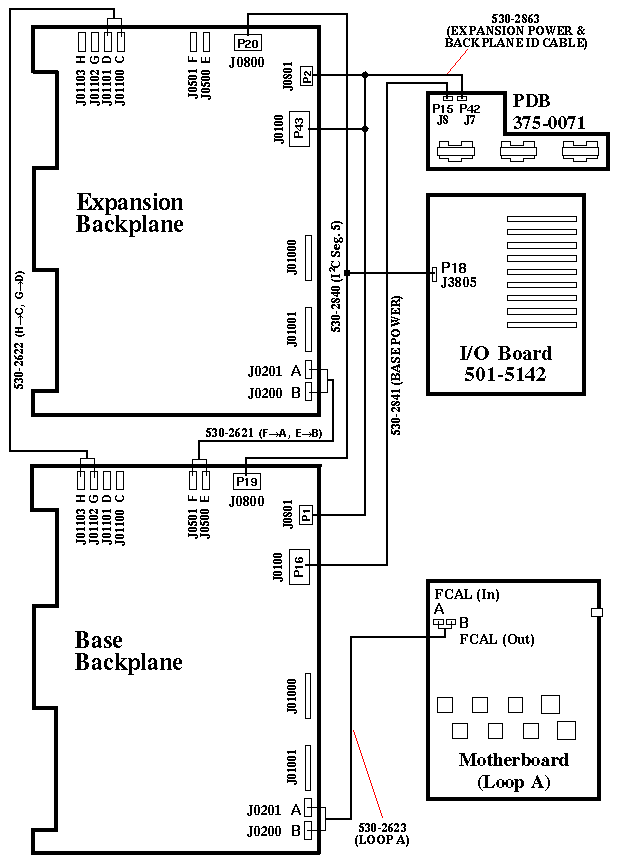

FCAL Base and Expansion Backplanes with Single Loop (A)

Note: When installing the Expansion Backplane, you must cable 'Loop B' from Base to Expansion (cable part #530-2622). This is a requirement even if you are NOT driving 'Loop B' from the X6727A (375-3030) card. This is needed to maintain arbitration and loop integrity between backplanes.

NOTE: Right click and select "View Image" to get just the image for printing and saving.

[Back to Top]

Cable	Connection Points
Base Power Cable Part # 530-2841	Origin: P15 to PDB-J8 Destination: P16 to Base Backplane-J0100
I²C Segment 5 (Part 1) Cable Part # 530-2840	Origin: P18 to I/O Board-J3805 Destination: P19 to Base Backplane-J0800
FCAL Motherboard to Base Backplane Loop A Cable Part # 530-2623	Origin: On Motherboard - A to FCAL(IN), B to FCAL(OUT) Destination: On Base Backplane - A to J0201, B to J0200
Expansion Power Cable / Backplane ID Cable Part # 530-2863	Origin (Expansion Power Cable): P42 to PDB-J7 Destination (Expansion Power Cable): P43 to Expansion Backplane-J0100 and Origin (Backplane ID Cable): P1 to Base Backplane-J0801 Destination (Backplane ID Cable): P2 to Expansion Backplane-J0801
I²C Segment 5 (Part 2) Cable Part # 530-2840	Origin: P18 to I/O Board-J3805 Destination: P20 to Expansion Backplane-J0800 Note: P18 already plugged in for Base Backplane operation. Secondary PCI fan may need to be removed to get at P20 (Tie-wrapped on rear wall to left of Expansion Backplane)
FCAL (Base to Expansion) Backplane Loop A Cable Part # 530-2621	Origin: On Base Backplane - E to J0500, F toJ0501 Destination: On Expansion Backplane - A to J0201, B to J0200
FCAL (Base to Expansion) Backplane Loop B Cable Part # 530-2622	Origin: On Base Backplane - G to J01102, H to J01103 Destination: On Expansion Backplane - C to J01100, D to J01101 Note: FCAL (Base to Expansion) Backplane Loop B Cable (Part #530-2622) is needed to maintain arbitration and loop integrity between the two backplanes.
