ECP 1284 Parallel Port Printer Test (ecpptest) |
The
ecpptest
verifies the functionality of the
ecpp
(7) IEEE 1284
parallel printer port device.
The
ecpp(7)
device is an
exclusive use device
. Only one application can interface with it at a time.
This test is not scalable.
ecpptest Hardware and Software Requirements
The
ecpp(7)
driver is installed with the operating system if the system being tested supports the
ecpp(7)
device. To run the optional printer subtest, a Centronics or ECP-mode printer must be attached to the printer port. To run the optional external loopback test, a passive loopback connector must be installed on the printer port.
Note - The external loopback test is intended for Sun internal manufacturing use only. It requires a custom loopback connector not available to an external customer.
|
ecpptest Subtests
TABLE 15-1 ecpptest Subtests
Subtest
|
Description
|
Internal Test FIFO Loopback
|
Verifies DMA and PIO accesses to the
ecpp
device. It uses an Internal Test FIFO on the
ecpp
device. There are no printer or loopback connectors required. This test is always executed.
|
External Passive Loopback
|
This verifies the parallel port I/O connections to the back panel connector. This test requires a passive loopback connector (Sun part no. 270-2965-01). This test is disabled by default and must be manually enabled by the user.
Note: The external loopback test is intended for Sun internal manufacturing use only. It requires a custom loopback connector that is not available to an external customer.
|
Printer test
|
This verifies the parallel port printer operation. It outputs a half page of ASCII character data. The output mode (for example, ECP and Centronics) is determined by which mode the printer and
ecpp
driver automatically negotiate. It will not change the current mode. The user must verify that data printed properly. This test is disabled by default and must be manually enabled by the user.
|
ecpptest Options
To reach the dialog box below, right-click on the test name in the System Map and select Test Parameter Options. If you do not see this test in the System Map, you might need to expand the collapsed groups, or your system may not include the device appropriate to this test. Refer to the
SunVTS User's Guide
for more details.

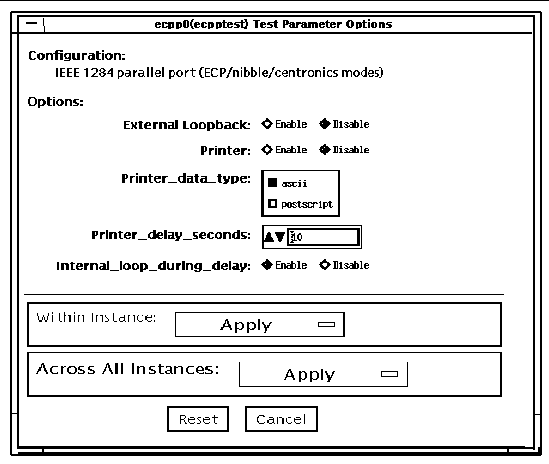

FIGURE 15-1 ecpptest Test Parameter Options Dialog Box
TABLE 15-2 ecpptest Options
ecpptest
Options
|
Description
|
External Loopback
|
Enables or disables the external loopback test. This test requires a special loopback plug.
|
Printer
|
Enables or disables the printer test; this test requires a printer to be attached to the parallel port.
|
Printer_data_type
|
Choose whether ascii text or PostScript data is sent to the printer. The printer test must be enabled for this to be meaningful. A postscript printer must be attached to print postscript data.
|
Printer_delay _seconds
|
Allows the user to choose a delay between passes of the printer test. This prevents continuous printing of data that could quickly empty the paper supply. This is only meaningful if the printer test is enabled.
|
Interrnal_loop_
during_delay
|
Enables the Internal Test FIFO loopback test during the printer delay time. This is only meaningful if the printer test is enabled.
|
ecpptest Test Modes
TABLE 15-3 ecpptest Test Modes
Test Mode
|
Supported?
|
Description
|
Connection
|
Yes
|
Opens and closes the
ecpp
(7) device. No data is transferred. The test passes if the device can be open and closed successfully. The test also passes if the device cannot be opened because the device is busy with another process.
|
Functional
(Offline)
|
Yes
|
Runs the internal loopback test and the user can optionally run the External loopback test and Printer test. The test will fail if the device is busy.
|
ecpptest Command-Line Syntax
/opt/SUNWvts/bin/ecpptest
standard_arguments
-o [dev=
device_name
]
[ext_loop=
Enable|Disable
][printer=
Enable|Disable
]
[
,data=
ascii
|
postscript
][
,
delay=
0
-
86400
][
,dloop=
Enable
|
Disable
]
TABLE 15-4 ecpptest Command-Line Syntax
Argument Description
|
dev=
device_name
|
Specifies the name of the device. This should be of the form
/dev/ecpp#
,
where
#
is the minor number of the device. The default device is
/dev/ecpp0
.
|
ext_loop=
Enable|Disable
|
If enabled, the external loopback test is run. The external loopback plug must be attached to the printer port.
|
printer=
Enable|Disable
|
If enabled, the printer test is run. A Centronics or ECP mode parallel port printer must be attached
|
data=
ascii
|
postscript
|
Choose whether ASCII text or PostScript data is sent to the printer. A PostScript printer must be attached to print postscript data.
|
delay=
0
-
86400
|
Allows the user to choose a delay between passes of the printer test. This prevents continuous printing of data that could quickly empty the paper supply.
|
dloop=
Enable
|
Disable
|
Enables the Internal Test FIFO loopback test during the printer delay time.
|
Note Note - 64-bit tests are located in the sparcv9 subdirectory: /opt/SUNWvts/bin/sparcv9/testname. If a test is not present in this directory, then it may only be available as a 32-bit test. For more information refer to 32-Bit and 64-Bit Tests.
|
